| Product | |
|---|---|

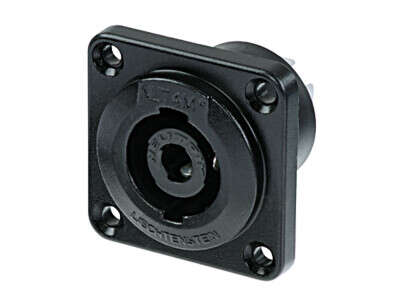

| Title | NLT4MP-BAG |
| Connection Type | speakON |
| Gender | male |
| Electrical | |
|---|---|
| Contact resistance | < 2 mΩ (after lifetime) |
| Dielectric strength | 4 kVdc (peak) |
| Insulation resistance | > 10 GΩ |
| Rated current per contact | 40 A rms continuous |
| Rated current per contact | 50 A audiosignal, duty cycle 50 % |
| Rated voltage | 250 V ac |
| Attention | speakON is NOT to be used as an AC mains or power supply connector! |
| Mechanical | |
|---|---|
| Lifetime | > 5000 mating cycles |
| Wiresize | |
| Locking device | Quick Lock |
| Chassis shape | square G-size flange |
| Layout | four thru holes |
| Material | |
|---|---|
| Contact plating | 4 µm Ag |
| Insert | Polyamide (PA 6 30 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) black chrome |
| Contacts | Spring Copper (CuSn0.2) |
| Environmental | |
|---|---|
| Flammability | UL 94 HB |
| Protection class | IP 54 (mated condition) |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |
