| Product | |
|---|---|

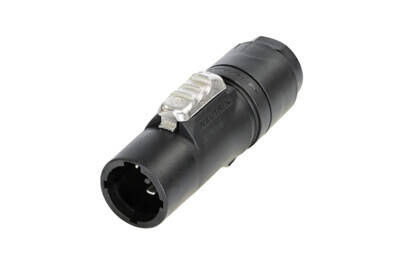

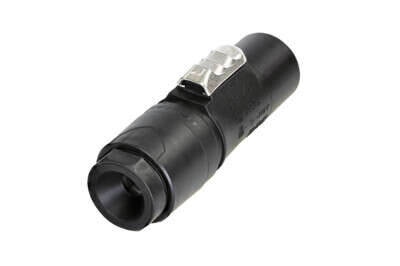

| Title | NAC3MX-W-TOP-L |
| Connector series | powerCON TRUE1 |
| Electrical | |
|---|---|
| Dieletric strength | 2.8 kVac |
| Insulation resistance | > 0.1 GΩ |
| Number of electronical contacts | 2 + PE |
| Rating Europe | IEC EN 60320-1: 16 A 250 V AC |
| Certified with cable types: H07RN-F3G2.5 | |
| Rating USA | UL 60320-1 & C22.2 No. 60320-1:19: 20 A 250 V AC |
| Certified with cable types: | |
| - SOOW 12/3, SOOW 14/3 | |
| - SJOOW 12/3 | |
| Mechanical | |
|---|---|
| Cable O.D. | 10 – 16 mm (0.39 – 0.63 inches) |
| Lifetime | Typically 5’000 mating cycles |
| Wire size (mm²) | 2.5 mm² |
| Wire size (AWG) | 14 – 12 AWG |
| Material | |
|---|---|
| Contact plating | 2 µm Ag |
| Contacts | Bronze (CuSn0.2) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | ZuAl4Cu1 |
| Shell | Polyamide (PA 6.6 30 % GR) |
| Strain relief | Polyacetal (POM) |
| Environmental | |
|---|---|
| Temperature range | -30 °C to +80 °C |
| Flammability | UL94 V-0 |
| Protection class | IP65 |
| UV resistance | F1 rated material withstands UV exposure |
