| Product | |
|---|---|

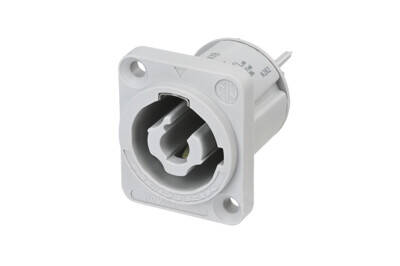

| Title | NAC3MPXXB |
| Gender | male |
| Electrical | |
|---|---|
| Contact resistance | ≤ 2 mΩ |
| Dielectric strength | 4 kVdc / 2.8 kVac |
| Insulation resistance | > 1 GΩ (after damp heat test IEC 68-2-30) |
| Number of electrical contacts | 2 + PE |
| Rating Europe | EN 60320-1: 16 A 250 V AC |
| Rating USA / Canada | cUL 60320-1: 20 A 127 V AC UL USA 498: 20 A 250 V AC UL CA 498: 20 A 250 V AC |
| UL 1977: 20 A 250 V AC | |
| Mechanical | |
|---|---|
| Lifetime | > 5000 mating cycles |
| Wiresize | 2,5 mm² |
| Wiresize | 12 AWG |
| Material | |
|---|---|
| Contact plating | Ag |
| Locking element | Stainless steel |
| Shell | Polyamide (PA 6.6) |
| Contacts | Copper Alloy |
| Environmental | |
|---|---|
| Flammability | UL 94 V-0 |
| Protection class | IP 20 |
| Temperature range | -30 °C to +80 °C |
