| Product | |
|---|---|

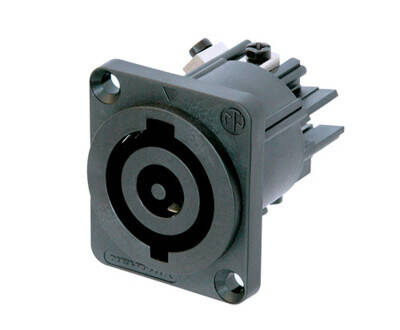

| Title | NAC3MP-HC |
| Connection Type | powerCON |
| Gender | male |
| Electrical | |
|---|---|
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 4 kVdc / 2.8 kVac |
| Insulation resistance | > 10 GΩ (initial) |
| Rating Europe | EN 61984: 32 A 250 V AC |
| Rating USA | UL 1977: 32 A 250 V AC |
| Maximal Wattage according to IEC 62368-1 | 4000 W rms |
| Mechanical | |
|---|---|
| Lifetime | > 1000 mating cycles |
| Wiresize | 2.5 - 6 mm² |
| Wiresize | 14 - 10 AWG |
| Wiring | screw terminals |
| Locking device | Quick Lock |
| Material | |
|---|---|
| Contact plating | 4 µm Ag |
| Contacts | Bronze (CuSn0.2) |
| Locking element | Steel Ck67 |
| Shell | Polyamide (PA 6.6 25 % GR) |
| Environmental | |
|---|---|
| Flammability | UL 94 V-0 |
| Protection class | IP 20 (mated) |
| Safety Requirements | EN/IEC 61984 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -25 °C to +70 °C |
