| Product | |
|---|---|

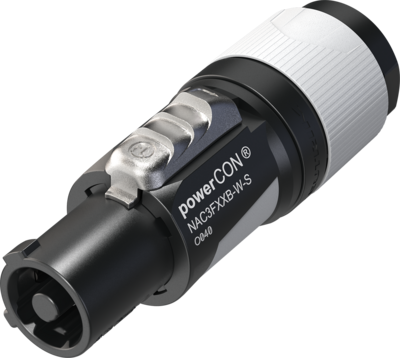

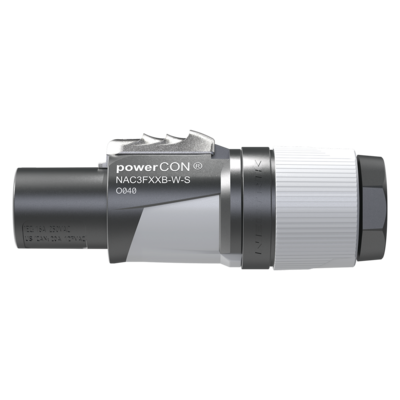

| Title | NAC3FXXB-W-S |
| Connector series | powerCON blue/grey |
| Electrical | |
|---|---|
| Contact resistance | ≤ 2 mΩ |
| Dielectric strength | > 3 kVac (after mating cycles) |
| Insulation resistance | > 10 GΩ (initially) |
| Number of electrical contacts | 2 + PE |
| Rating Europe | EN 60320-1: 16 A 250 V AC, CBC |
| Rating USA / Canada | cUL 60320-1: 20 A 127 V AC UL USA 498: 20 A 250 V AC UL CA 498: 20 A 250 V AC |
| Mechanical | |
|---|---|
| Cable O.D. | 6 - 12 mm |
| Lifetime | typically 5’000 mating cycles |
| Wiresize (mm²) | 1.5 – 2.5 mm² |
| Wiresize (AWG) | 16 – 12 AWG, see above cable list |
| Locking device | Twist lock |
| Termination | Screw type terminals |
| Material | |
|---|---|
| Contact plating | Ag |
| Contacts | Copper Alloy |
| Insert | Polyamide (PA6.6) |
| Locking element | Zinc diecast |
| Shell | Polyamide (PA6) / TPE |
| Strain relief | Polyketone |
| Bushing | Polypropylene / TPE |
| Environmental | |
|---|---|
| Temperature range | -33 °C to + 80 °C |
| Protection class | IP20 |
| Flammability acc. to UL94 | V-0 |
