| Product | |
|---|---|

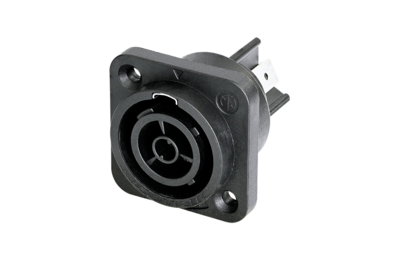

| Title | NAC3FPX-TOP |
| Electrical | |
|---|---|
| Contact resistance | ≤ 2 mΩ |
| Dielectric strength | 4 kVdc / 2.8 kVac |
| Insulation resistance | > 1 GΩ (after damp heat test) |
| Number of electrical contacts | 2 + PE |
| Rating Europe | EN 60320-1: 16 A 250 V AC |
| Rating USA | UL 498: 20 A 250 V AC |
| Mechanical | |
|---|---|
| Lifetime | > 5000 mating cycles |
| Wiresize | 2.5 mm² |
| Wiresize | 12 AWG |
| Material | |
|---|---|
| Contact plating | 2 µm Ag |
| Locking element | Stainless steel |
| Shell | Polyamide (PA 6.6) |
| Contacts | Spring Copper (CuSn0.2) |
| Environmental | |
|---|---|
| Flammability | UL 94 V-0 |
| Protection class | IP65, UL50E enclosure type4 rating in combination with SCNAC-FPX (mated or with closed cap) |
| Temperature range | -30°C to +80°C according to IEC 61984 -5°C to +40°C according to IEC 60320-1 |
