| Product | |
|---|---|

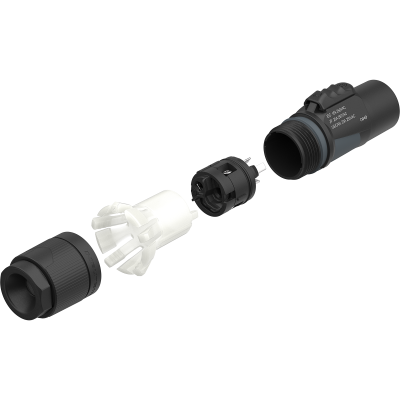

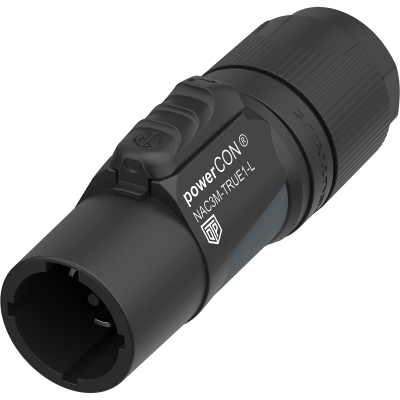

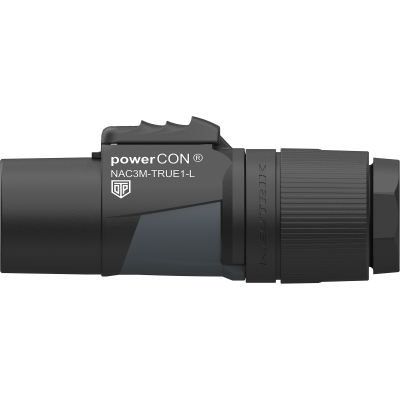

| Title | NAC3M-TRUE1-L |
| Product family | powerCON® TRUE1 |
| Electrical | |
|---|---|
| Contact resistance | ≤ 2 mΩ |
| Dielectric strength | 4 kVdc / 2.8 kVac |
| Insulation resistance | >0.1GΩ (after damp and heat test IEC 68-2-30) |
| Number of electrical contacts | 2 + PE |
| Rating Europe | 16 A / 250 V AC according to EN IEC 60320-1 |
| Rating America | 20 A / 250 V AC according to UL 60320-1 20 A / 250 V AC according to CSA C22.2 No. 60320-1 |
| Mechanical | |
|---|---|
| Cable O.D. | 10 - 16 mm (0.39 – 0.63 inches) |
| Lifetime | > 5000 mating cycles |
| Wiresize (mm²) | 1.0 – 2.5mm² |
| Wiresize (AWG) | 14 - 12 AWG |
| Material | |
|---|---|
| Contact plating | 2 μm Ag |
| Locking element | Polyamide (PA 66) |
| Contacts | Copper Alloy |
| Insert | Polyamide (PA 66) |
| Shell | Polyamide (PA 66) |
| Strain relief | Polyketon |
| Environmental | |
|---|---|
| Flammability | UL 94 V-0 |
| Protection class | IP 65 / 67 (mated or with closed caps) |
| UV resistance | F1 rated material withstands UV exposure |
| Temperature range | -30°C to +80°C according to IEC 61984 -5°C to +40°C according to IEC 60320-1 |
