| Product | |
|---|---|

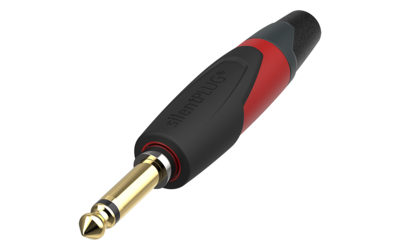

| Title | NP2XX-SILENT |
| Connection type | plug |
| Gender | male |
| Electrical | |
|---|---|
| Contact resistance | depends on mating connector mΩ |
| Dielectric strength | 0.2 kVdc |
| Insulation resistance | > 2 GΩ (initial) |
| Rated current per contact | depends on mating connector A |
| Rated voltage | < 50 V |
| Mechanical | |
|---|---|
| Cable O.D. | 4 - 7 mm |
| Lifetime | > 1000 mating cycles |
| Wiresize (mm / AWG) | 1 mm² / 18 AWG |
| Wiring | Solder contacts |
| Material | |
|---|---|
| Bushing | PP + PA6 |
| Contact plating | 0.2 μm Au |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Shell | TPE + PA6 |
| Strain relief | Polyacetal (POM) |
| Environmental | |
|---|---|
| Standard compliance | IEC 60603-11 / EIA RS-453 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -20 °C to +65 °C |
