Lavoce

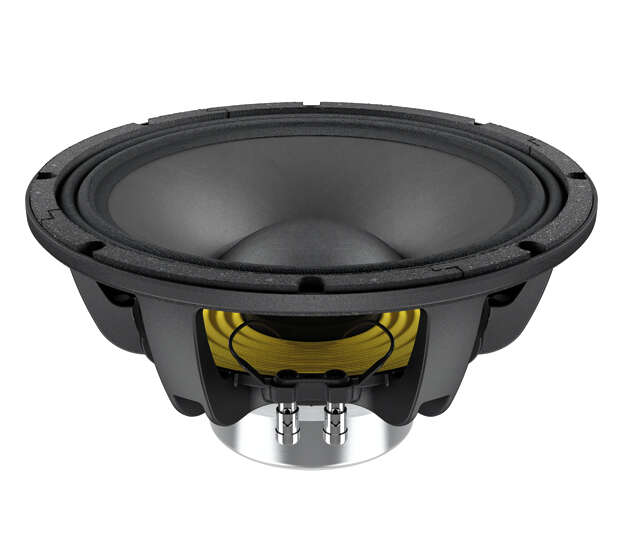

WAN123.00 12" WOOFER

21.362 TL
Fiyat Alarmı

Tükendi

Gelince Haber Ver
21.362 TL
Gelince Haber Ver
FEATURES



- 3 INCH CCAW VOICE COIL

- 99 dB/SPL SENSITIVITY

- 1000 WATT PROGRAM POWER HANDLING

- FEM OPTIMIZED MOTOR AND SUSPENSIONS

- OPTIMIZED COOLING SYSTEM

- ALTERNATIVE IMEDANCE: 4 OHM AND 16 OHM



GENERAL SPECIFICATIONS
Nominal diameter
mm (in)
300 (12)
Nominal Impedance
Ohm
8
Minimum impedance
Ohm
5,7
Program power
W
1000
AES Power rating
W
500
Sensitivity
dB
99
Frequency range
Hz
50 ÷ 3000
Voice coil diameter
mm (in)
75 (3)
Chassis material

Aluminium
Magnet material

Neodymium
Magnet dimensions OD x ID x h
mm (in)
75,4 x 10 (2.97 x 0.39)
Coil material

CCAW
Former material

Glass Fiber
Cone material

Water Resistant Treated Paper + Water Proof Front Side Treatment
Surround material

Polycotton
Xmax
mm (in)
6,9 (0.27)
Xmech
mm (in)
12,7 (0.5)
Gap height
mm (in)
10,5 (0.41)
Voice coil winding height
mm (in)
19 (0.75)
Driver displacement volume
l (ft³)
2,4 (0.08)
Recommended Enclosure
l (ft³)
62,3 (2.2)
Recommended Tuning
Hz
55
SMALL SIGNAL PARAMETERS
DC resistance (Re)
Ohm
4,8
Resonance frequency (Fs)
Hz
49
Moving mass (Mms)
g (oz)
61,5 (2.17)
Compliance (Cms)
mm/N
0,172
Force factor (Bxl)
N/A
17,9
Mechanical Q-factor (Qms)

6,54
Electrical Q-factor (Qes)

0,28
Total Q-factor (Qts)

0,27
Equivalent air volume (Vas)
l (ft3)
68,8 (2.43)
Voice coil inductance (Le)
mH
0,69
Diaphragm area (Sd)
cm2 (in.2)
531 (82.3)
Reference efficiency (Eta 0)

2,75 %
Efficiency bandwidth product (EBP)
Hz
175

SHIPPING INFORMATION
Net weight
kg (lb)
5,2 (11.4)
Multipack size W x D x H
mm x mm x mm (in x in x in)
360 x 360 x 195 (14.2 x 14.2 x 7.7)
Multipack weight
kg (lb)
6,5 (14.3)
DIMENSIONS mm (in.)
