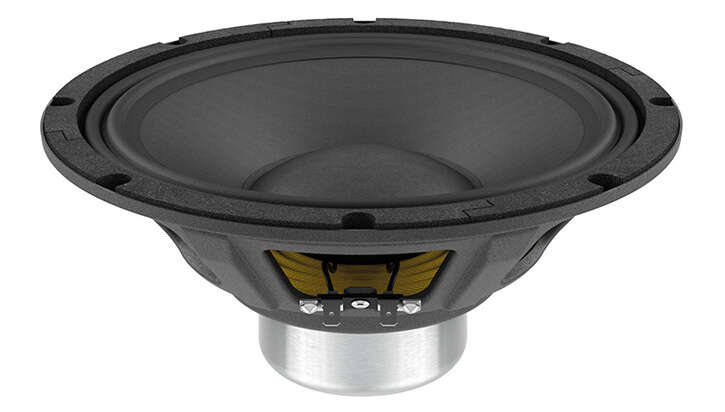

WSN102.50 10" WOOFER
14.515 TL
GENERAL SPECIFICATIONS
Nominal diameter
mm (in)
250 (10)
Nominal Impedance
Ohm
8
Minimum impedance
Ohm
5,7
Program power
W
600
AES Power rating
W
300
Sensitivity
dB
97,5
Frequency range
Hz
75 ÷ 3000
Voice coil diameter
mm (in)
65 (2.5)
Chassis material
Steel
Magnet material
Naodymium
Magnet dimensions OD x ID x h
mm (in)
62,95 x 10 (2.48 x 0.39)
Coil material
CCAW
Former material
Glass Fiber
Cone material
Water Resistant Treated Paper
Surround material
Polycotton
Xmax
mm (in)
2,9 (0.11)
Xmech
mm (in)
10,6 (0.42)
Gap height
mm (in)
13 (0.51)
Voice coil winding height
mm (in)
12,2 (0.48)
Driver displacement volume
l (ft³)
1,1 (0.04)
Recommended Enclosure
l (ft³)
30 (1.05)
Recommended Tuning
Hz
80
SMALL SIGNAL PARAMETERS
DC resistance (Re)
Ohm
4,9
Resonance frequency (Fs)
Hz
76
Moving mass (Mms)
g (oz)
36,05 (1.27)
Compliance (Cms)
mm/N
0,120
Force factor (Bxl)
N/A
14,05
Mechanical Q-factor (Qms)
4,85
Electrical Q-factor (Qes)
0,43
Total Q-factor (Qts)
0,39
Equivalent air volume (Vas)
l (ft3)
20,71 (0.73)
Voice coil inductance (Le)
mH
0,61
Diaphragm area (Sd)
cm2 (in.2)
350 (54.3)
Reference efficiency (Eta 0)
2,10 %
Efficiency bandwidth product (EBP)
Hz
177
SHIPPING INFORMATION
Net weight
kg (lb)
2,8 (6.2)
Multipack size W x D x H
mm x mm x mm (in x in x in)
300 x 300 x 167 (11.8 x 11.8 x 6.6)
Multipack weight
kg (lb)
3,5 (7.7)
DIMENSIONS mm (in.)
