Lavoce

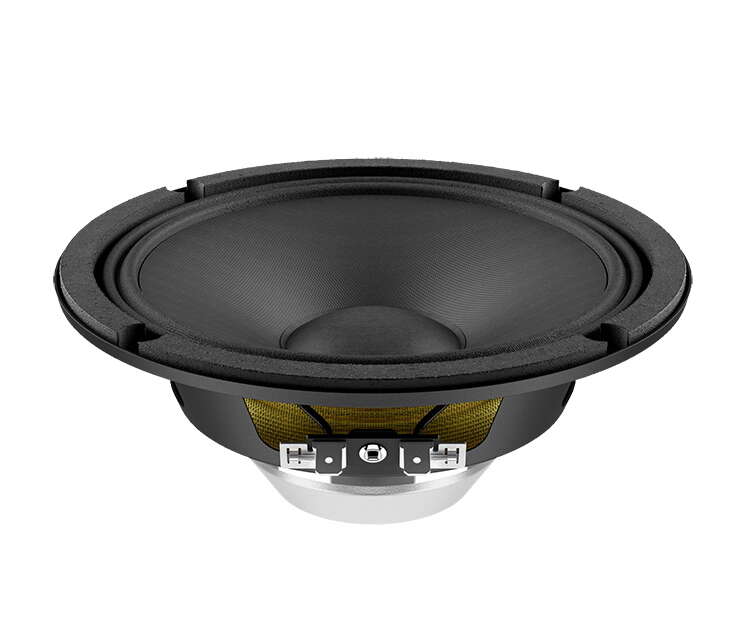

WSN061.52 6.5 inç 200W Hoparlör

6.845 TL
Fiyat Alarmı

Tükendi

Gelince Haber Ver
6.845 TL
Gelince Haber Ver
GENERAL SPECIFICATIONS
Nominal diameter
mm (in)
165 (6.5)
Nominal Impedance
Ohm
8
Minimum impedance
Ohm
6,4
Program power
W
250
AES Power rating
W
125
Sensitivity
dB
94
Frequency range
Hz
90 ÷ 6000
Voice coil diameter
mm (in)
38 (1.5)
Chassis material

Steel
Magnet material

Neodymium
Magnet dimensions OD x ID x h
mm (in)
75 x 45 x 4 (2.95 x 1.77 x 0.16)
Coil material

Copper
Former material

Polyimide
Cone material

Water Resistant Treated Paper
Surround material

Polycotton
Xmax
mm (in)
3,8 (0.15)
Xmech
mm (in)
6,3 (0.25)
Gap height
mm (in)
6 (0.24)
Voice coil winding height
mm (in)
10,6 (0.42)
Driver displacement volume
l (ft³)
0,3 (0.01)
Recommended Enclosure
l (ft³)
10,5 (0.37)
Recommended Tuning
Hz
90
SMALL SIGNAL PARAMETERS
DC resistance (Re)
Ohm
5,6
Resonance frequency (Fs)
Hz
90
Moving mass (Mms)
g (oz)
12,86 (0.45)
Compliance (Cms)
mm/N
0,24
Force factor (Bxl)
N/A
9,88
Mechanical Q-factor (Qms)

5,31
Electrical Q-factor (Qes)

0,42
Total Q-factor (Qts)

0,39
Equivalent air volume (Vas)
l (ft3)
5,92 (0.21)
Voice coil inductance (Le)
mH
0,42
Diaphragm area (Sd)
cm2 (in.2)
132 (20.5)
Reference efficiency (Eta 0)

1,01 %
Efficiency bandwidth product (EBP)
Hz
214

SHIPPING INFORMATION
Net weight
kg (lb)
0,9 (2)
Multipack size W x D x H
mm x mm x mm (in x in x in)
415 x 375 x 218 (16.3 x 14.8 x 8.6)
Multipack weight
kg (lb)
10 (22)
