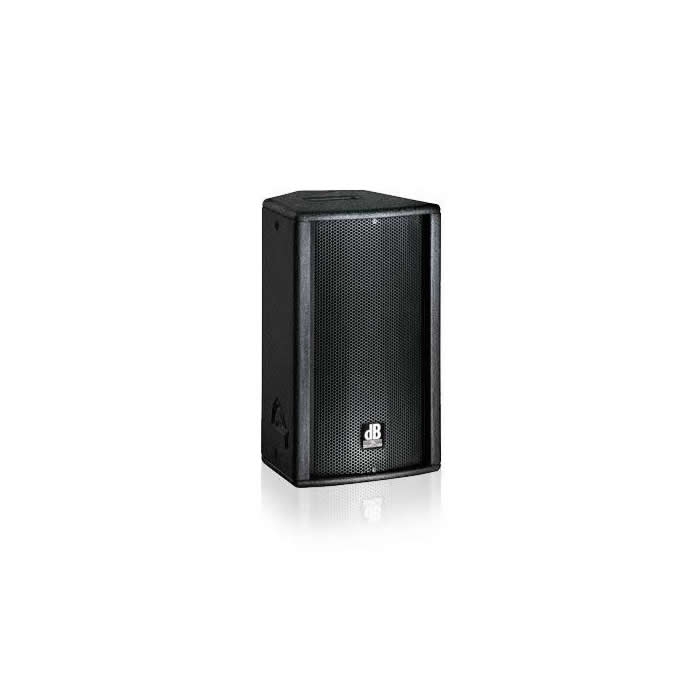

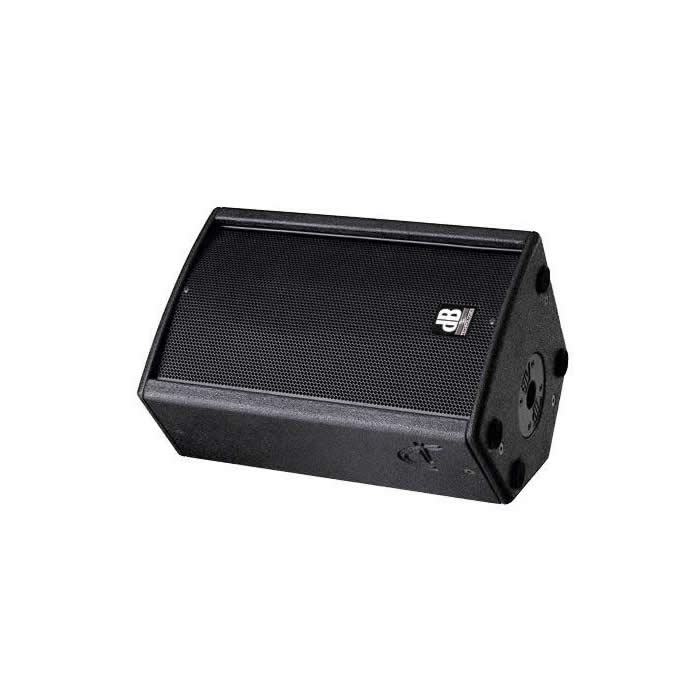

Arena 10 Pasif Hoparlör

Speaker Type 2-Way Passive Speaker

ACOUSTICAL DATA

Nominal Power Rating 300 W/RMS

Program Power Rating 600 W

Impedance 8 Ohms

Sensitivity 1W@1m 96 dB

Frequency Response [+/- 3dB] 90 - 19.000 Hz

Max SPL 127 dB

HF 1 “

Voice Coil HF 1.5 “

Driver Protection PTC

Directivity 90x70

Horn CD Horn Aluminium

Rotatable Horn YES

Crossover Frequency (passive) 1800 Hz

LF 10 “

Voice Coil LF 2 “

INPUT

Signal Input 1x Speakon (Pin 1+=+) (Pin 1-=-)

Signal Output 1x Speakon (Pin 1+=+) (Pin 1-=-)

MECHANICS

Housing Multiplex birch plywood

Rigging Points 12 x M8

Dimension WxHxD 320 mm.508 mm.320 mm

Weight 14.2 kg
