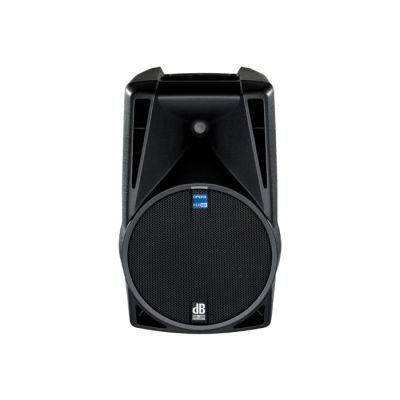

DB Technologies - Opera 510 DX Aktif Kabin Hoparlör

This 10“ unit is fast becoming the new standard for ultra compact fullrange speakers.

Able to deliver a mighty 400W of output power, the Opera 510 DX is the perfect mini PA for playing back music and performing live in smaller venues.

TECHNICAL DATA

Speaker Type: 2-Way Active Speaker

ACOUSTICAL DATA

Frequency Response [-10dB]: 62 - 20.000 Hz

Frequency Response [+/- 3dB]: 71 - 19.000 Hz

Max SPL: 122 dB

HF: 1 "

Type HF: Compression driver

Directivity: 80/65 x 60 °

Horn: Asymmetrical CD Horn

LF: 10 "

AMPLIFIER

Amp Technology: digipro®

Amp Class: Class D

Power PRG: 400 Watt

PROCESSOR

Controller: DSP 24bit/48kHz

System Presets: Flat, Processed

Limiter: Dual Active Peak, RMS, Thermal

INPUT

MECHANICS

Housing: Polyporpylen PP

Angles Up: Monitor use 43 °

Width: 343 mm (13.72 in)

Height: 553 mm (22.12 in)

Depth: 304 mm (12.16 in)

Weight: 9.8 kg (21.61 lbs)
