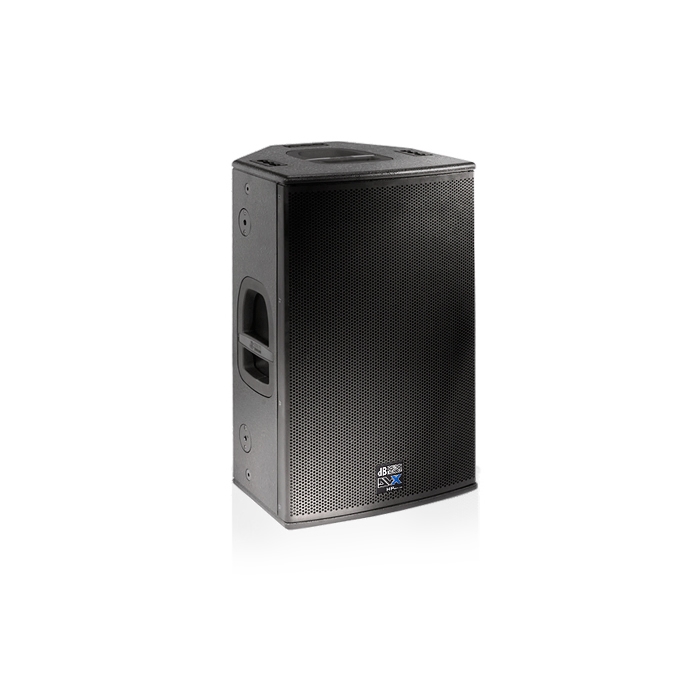

DB Technologies - DVX D15 HP Aktif Kabin Hoparlör

A two-way system featuring 15“/1.4“ speakers, the DVX D15 HP is the enclosure of choice for use as a fullrange FOH speaker or a powerful drum monitor.

It delivers punchy, assertive bass response without requiring an added subwoofer. Its integrated, high-performance digipro G2 digital power amp delivers very high sound pressure levels, exceedingly dynamic response, and tight, clean low-end response.

Loaded with high quality speakers, it provides premium audio performance with maximum reliability and minimum power compression.

A 1.4” driver with a 2,5” voice coil designed to handle highest loads renders vocals with a powerful, assertive punch, easily throwing signals across medium-to-longer distances.

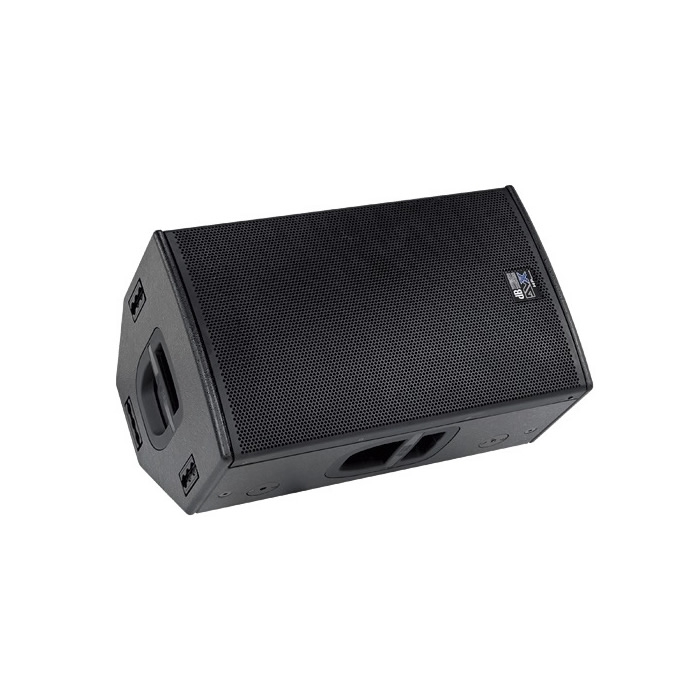

The housing’s multifunctional design incorporates rigging points and a slanted panel serving monitoring purposes.

TECHNICAL DATA

Speaker Type: 2-Way Active Speaker

ACOUSTICAL DATA

Frequency Response [-10dB]: 49 - 20.000 Hz

Frequency Response [+/- 3dB]: 57 - 19.000 Hz

Max SPL: 132 dB

HF: 1.4 "

Voice Coil HF: Titanium 2.5 "

Directivity: 60x40 °

Horn: CD Horn Aluminium

Rotatable Horn: YES

LF: 15 "

Voice Coil LF: 3.5 "

AMPLIFIER

Amp Technology: Digipro® G2

Amp Class: Class D

Power RMS: 700 W

Peak Power: 1400 W

Cooling: Convection

PROCESSOR

Controller: DSP 24 Bit/48 kHz

System Presets: FOH, Monitor

Limiter: RMS, Peak. Thermal, Multiband

Crossover Frequency MF-HF: 1320 Hz

Slope MF-HF: 24 dB/Octave

INPUT

MECHANICS

Housing: Multiplex birch plywood

Housing Design: Multifunctional

Angles Up: Monitor use 45 °

Rigging Points: 6x M10 4x Quick-Relase Pins

Flytracks: 3x on top 3x on bottom

Width: 430 mm (17.2 in)

Height: 690 mm (27.6 in)

Depth: 450 mm (18 in)

Weight: 30.3 kg (66.8 lbs)
