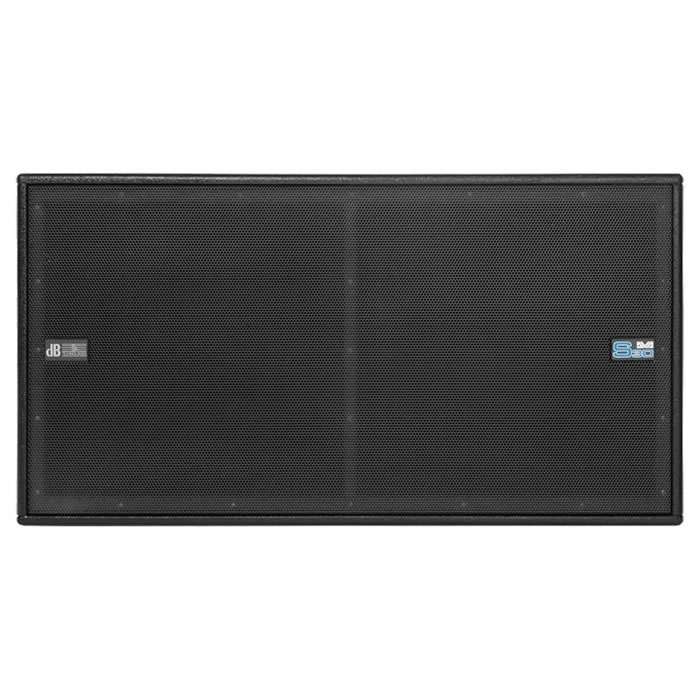

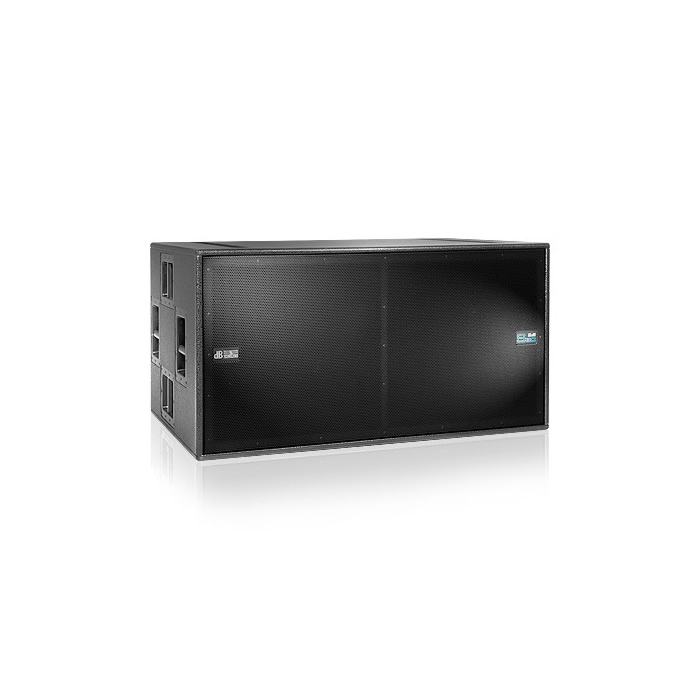

DB Technologies - DVA S30 Aktif Subbass Kabin Hoparlör

Featuring a dual 18“ subwoofer pairing in a bass reflex housing, the DVA S30 packs a muscular, ultra lowfrequency punch.

It delivers very powerful performance indeed with a range extending down to the lowest frequencies.

This sub-bass powerhouse is the perfect addition to large PAs and an excellent complement to DVA T12 mid-/high-range units in stacked arrays.

TECHNICAL DATA

Speaker Type: Active Bassreflex-Horn Subwoofer

ACOUSTICAL DATA

Frequency Response [+/- 3dB]: 30 - 120 Hz

Max SPL: 141 dB

Directivity: Omnidirectional, Cardiod Option with DSP setup

LF: 2x18 "

Voice Coil LF: 4 "

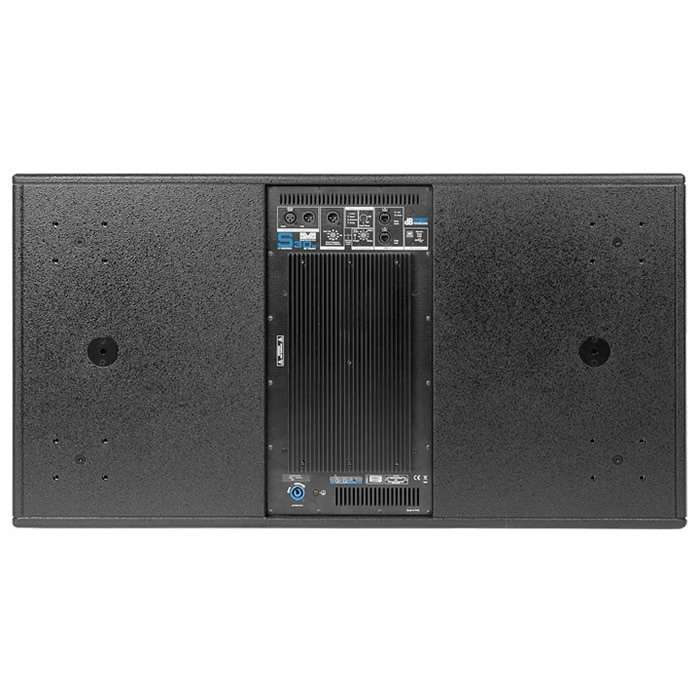

AMPLIFIER

Amp Technology: Digipro® G2

Amp Class: Class D

Power Supply: 3 kW SMPS

LF Amp: 3000 W RMS

Cooling: Convection

PROCESSOR

Controller: DSP 56 bit

AD/DA Converter: DSP 24 bit/48 kHz

System Presets: X-Over,Delay

Phase: 0, 180 °

Limiter: RMS, Peak, Thermal

Delay Option: 0-4.5 ms internal

Crossover Frequency LF-MF: 75-120Hz | steps of 5Hz

LF-Xover out slope: 24 dB/Octave

INPUT

MECHANICS

Housing: Multiplex birch plywood

Housing Design: Rectangular

Handles: 4x Per Side

Accessory: Dolly, Wheels 100mm, Dust Cover, Rain Cover

Rigging Points: 2xPick Points on top to fix DRK10/20 rigging frames

Width: 1100 mm (44 in)

Height: 580 mm (23.2 in)

Depth: 720 mm (28.8 in)

Weight: 83 kg (182.98 lbs)
