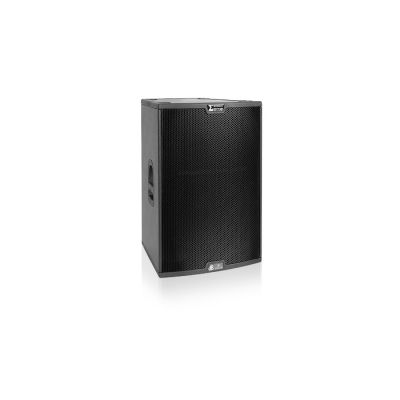

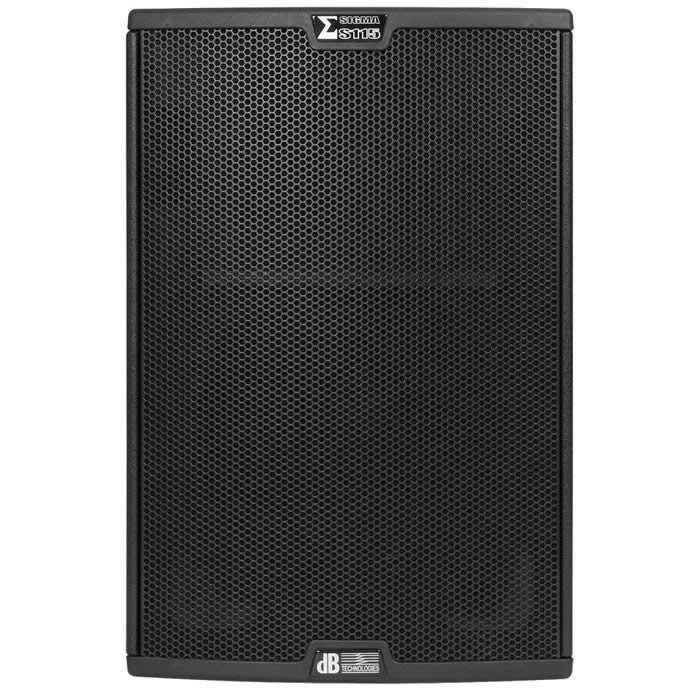

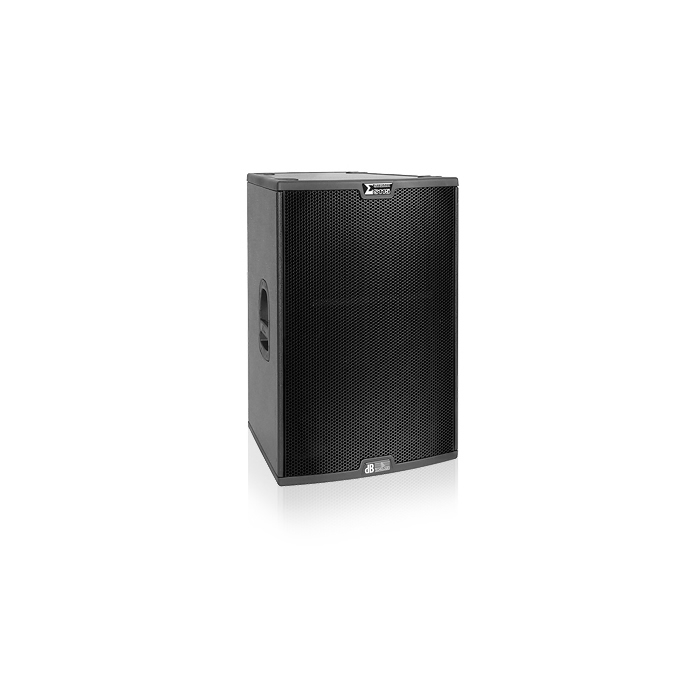

DB Technologies - SIGMA S115 Aktif Hoparlör

2-Way Active Speaker 15“/1.4“, 1000 W

This active 15“/ 1.4“ two-way system is musicians and DJs’ first choice in a fullrange FOH speaker.

The S115’s reach is remarkable thanks to its assertive midrange, prominent top end, and constant directivity at high sound pressure levels.

TECHNICAL DATA

Speaker Type: 2-Way Active Speaker

ACOUSTICAL DATA

Frequency Response [-10dB]: 46 - 20.000 Hz

Max SPL: 133 dB

HF: 1.4 "

Type HF: Titanium Compression driver

Voice Coil HF: 2.8"

Directivity: 60 x 40 °

Horn: CD Horn

Rotatable Horn: YES

LF: 15"

Voice Coil LF: 3"

AMPLIFIER

Amp Technology: Digipro® G2

Amp Class: Class D

Power PRG: 1000 W

Peak Power: 2000 W

PROCESSOR

Controller: DSP 24bit/48kHz

System Presets: Flat, Boost

Limiter: Dual Active Peak, RMS, Thermal

Crossover Frequency MF-HF: 1100 Hz

Slope MF-HF: 24 dB/Octave

INPUT

MECHANICS

Housing: Multiplex with H.E.T coating, reinforced

Width: 509 mm (20.36 in)

Height: 765 mm (30.6 in)

Depth: 533 mm (21.32 in)

Weight: 33 kg (72.75 lbs)
