Frequency Range (-10 dB): 32 Hz – 250 Hz
Frequency Response (±3 dB): 37 Hz – 120 Hz
Input Connection Modes: Switchable, +1/-1 or +2/-2
Internally selectable, Parallel or Discrete
Recommended Crossover Frequencies: 30 Hz, 24 dB / octave HPF 80 Hz, 24 dB / octave LPF
Power Rating(Continuous/ Program / Peak): Parallel: 2000 W / 4000 W / 8000 W
Maximum SPL: 138 dB SPL peak
Sensitivity (1w @ 1m): 99 dB SPL

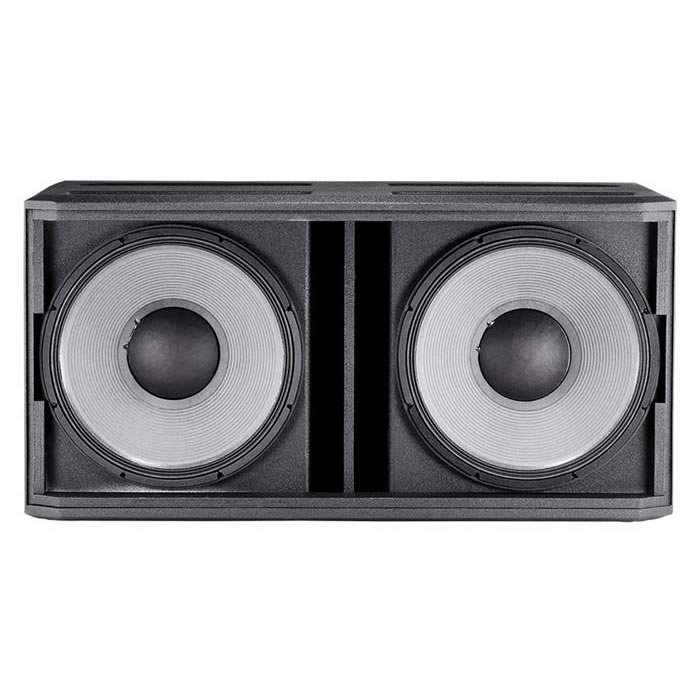

LF Driver: 2 x JBL 2242H 457 mm (18 in) Super Vented Gap
Cooled™ woofers
Nominal Impedance: Parallel: 4 ohms
Discrete: 8 ohms x 2
Active Tunings: Designed for Crown amplifiers and dbx DriveRack.
Settings available at www.jblpro.com
Enclosure: Rectangular, 18 mm, 13-ply birch/poplar plywood
Transport: 4 side handles, 4 side grip points
Finish: Black DuraFlex finish

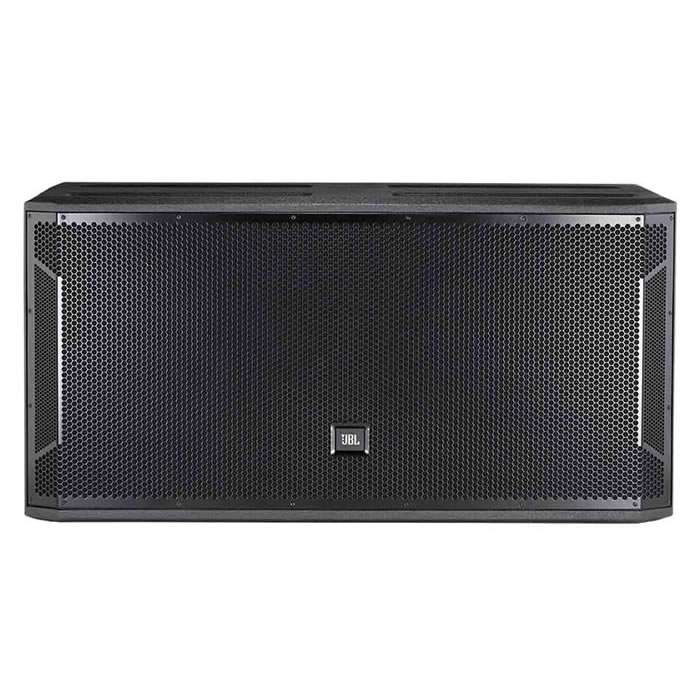

Grille: Powder coated, black, 14-gauge perforated steel with
acoustical transparent cloth backing. Removable JBL
badge and punched JBL logo.
Input Connectors: Neutrik Speakon® NL-4 (x2)
Dimensions (H x W x D): 564 mm x 1137 mm x 714 mm
(22.2 in x 44.8 in x 28.1 in)
Net Weight: 82 kg (180 lb)
