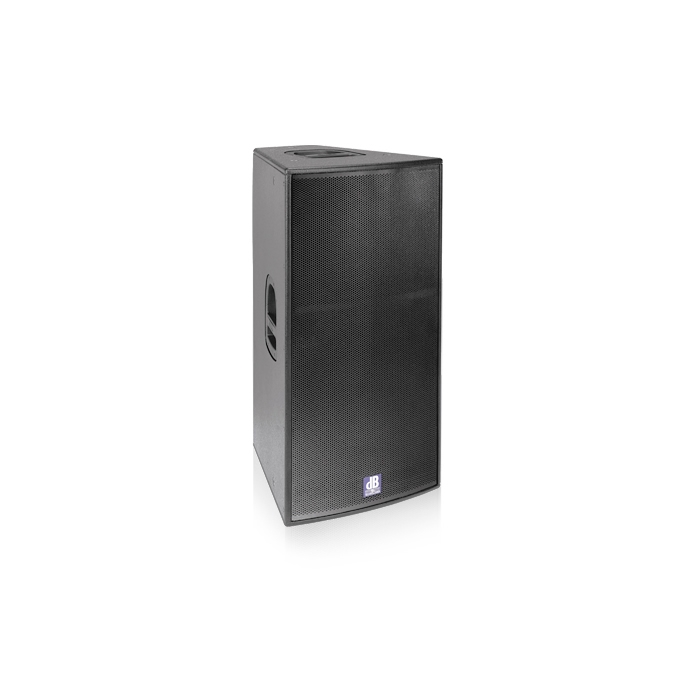

DB Technologies - Flexsys F-315 Aktif Hoparlör

The F315 is an active three-way system designed to render the full frequency range.

Powerful and assertive, it delivers the sonic goods without requiring an added subwoofer.

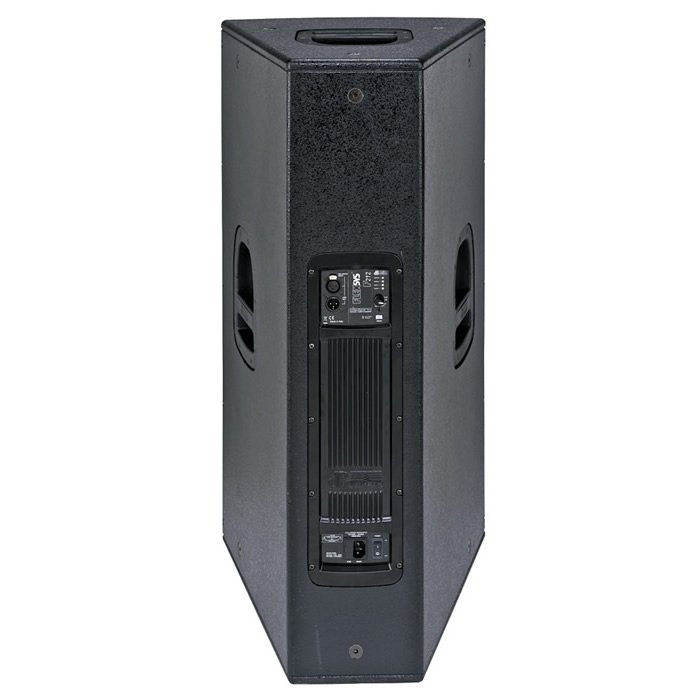

A bi-amped 1000 W/RMS digipro® Class-D digital power amp with switched-mode power supply offering PFC drives this fullrange enclosure.

Its powerful 15“ woofer, housed in a bass reflex chassis, packs a mighty low-end punch.

A specially designed dual horn section comprised of a 6“ horn-loaded midrange driver and a 1“ compression driver covers the middle and high frequency spectrum.

TECHNICAL DATA

Speaker Type: 3-Way Active Speaker

ACOUSTICAL DATA

Frequency Response [-10dB]: 47 - 20.000 Hz

Frequency Response [+/- 3dB]: 60 - 19.000 Hz

Max SPL: 131 dB

HF: 1 "

Type HF: compression driver

Directivity: 90 x 40 °

Horn: CD Horn

MF: 6.5 "

Type MF: Hornloaded

LF: 15"

AMPLIFIER

Amp Technology: Digipro®

Amp Class: Class D

Power RMS: 1000 W

Peak Power: 2000 W

PROCESSOR

Controller: DSP 24bit/48kHz

System Presets: Flat, Processed

Limiter: Dual Active Peak, RMS, Thermal

Crossover Frequency LF-HF: 1800 Hz

Slope LF-HF: 24 dB/Octave

INPUT

MECHANICS

Housing: Multiplex

Width: 440 mm (17.6 in)

Height: 880 mm (34.6 in)

Depth: 500 mm (20 in)

Weight: 31 kg (68.34 lbs)
