FEATURES

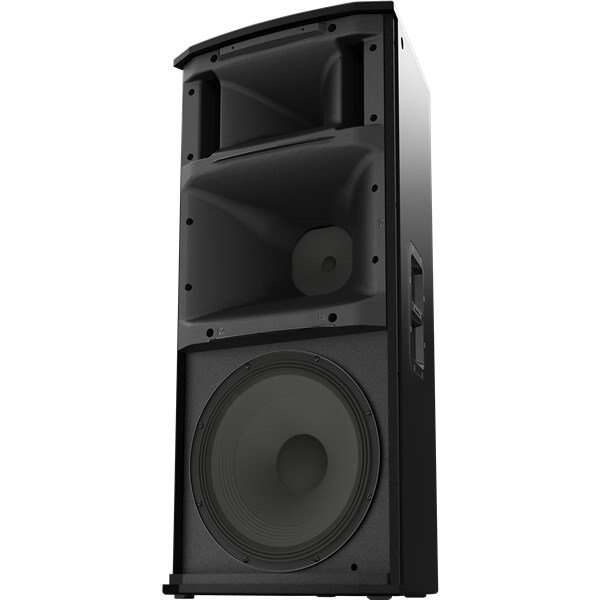

15" LF SMX woofer
6.5" MF driver
1.25" HF titanium compression driver
2000 W Class-D power amplifier with integrated FIR-Drive DSP
136 dB peak SPL
SPECIFICATIONS
Frequency Range: 38 Hz - 20 kHz
Maximum SPL: 136 peak dB
Power Consumption: 100 - 240 V~, 50 - 60 Hz, 1.6 - 0.8 A
Power Rating: 2000 W
Frequency Response: 48 Hz - 20 kHz
Coverage (Nominal -6 dB) H: 60 °
Coverage (Nominal -6 dB) V: 40 °
LF Transducer: SMX2151 380 mm (15 in)
MF Transducer: EVS-6C 6.5-in midbass driver
HF Transducer: DH3-B 1.25-in titanium compression driver
Crossover Frequency: 700 Hz, 2900 Hz
Connector Type: (2) XLR/TRS combo jack and (1) XLR link output
Enclosure Material: 18-mm, 13-ply birch plywood with EVCoat
Grill: 16AWG steel with powdercoat
Suspension: (8) M10 suspension points
Height: 1023 mm (40.28")
Width: 469 mm (18.46")
Depth: 426 mm (16.77")
Weight Net: 41.7 kg (91.93 lbs)
Shipping Weight: 46.8 kg (103.18 lbs)
