DB Technologies - Flexsys F-212 Aktif Hoparlör

The F212 is an active two-way system with considerable reach.

A very efficient and powerful mid-/high-range unit, it was designed to be combined with active subwoofers to construct high-performance PA systems.

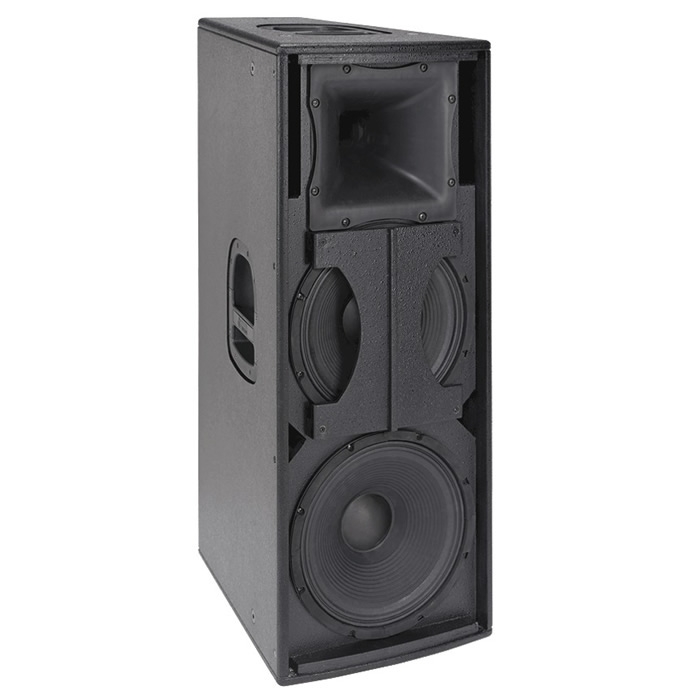

Loaded with two 12“ woofers, this assertive cabinet throws sounds across considerable distances, performing exceedingly well in the low midrange.

Its excellent directivity comes courtesy of ADC (Acoustical Directivity Control) technology that also allows F212 enclosures to be clustered to achieve wider coverage.

The cabinet is driven by two bi-amped digipro® Class-D digital power amps with switched-mode power supplies offering PFC to ensure peak performance even under less-thanperfect live conditions.

A custom-engineered, array-enabled 60° x 40° CD horn, coupled to a next-generation 1“ neodymium compression driver, delivers assertive, high-definition response throughout the upper frequency range.

TECHNICAL DATA

Speaker Type: Quasi 3-Way Active Speaker

ACOUSTICAL DATA

Frequency Response [-10dB]: 50 - 20.000 Hz

Frequency Response [+/- 3dB]: 65 - 19.000 Hz

Max SPL: 132 dB

HF: 1 "

Type HF: neodymium compression driver

Directivity: 60 x 40 °

Horn: CD Horn

Rotatable Horn: YES

LF: 2x12" (with phase plug)

AMPLIFIER

Amp Technology: Digipro®

Amp Class: Class D

Power RMS: 1000 W

Peak Power: 2000 W

PROCESSOR

Controller: DSP 24bit/48kHz

System Presets: Flat, Clustered

Limiter: Dual Active Peak, RMS, Thermal

Crossover Frequency LF-HF: 1800 Hz

Slope LF-HF: 24 dB/Octave

INPUT

MECHANICS

Housing: Multiplex

Width: 360 mm (14.4 in)

Height: 930 mm (37.2 in)

Depth: 500 mm (20 in)

Weight: 31.5 kg (69.45 lbs)
