Lavoce

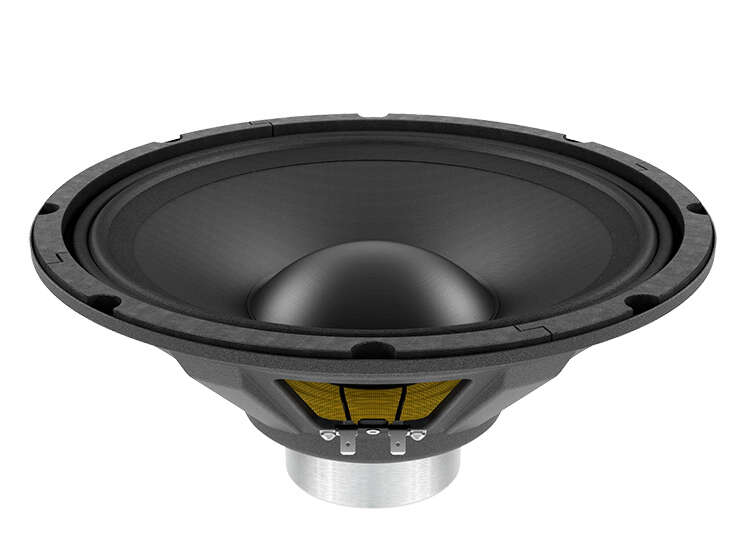

WSN122.50 12" WOOFER

13.248 TL
Fiyat Alarmı

Tükendi

Gelince Haber Ver
13.248 TL
Gelince Haber Ver
FEATURES



- 2.5 INCH CCAW VOICE COIL

- 97,5 dB/SPL SENSITIVITY

- 500 WATT PROGRAM POWER HANDLING

- FEM OPTIMIZED MOTOR AND SUSPENSIONS

- OPTIMIZED COOLING SYSTEM

- RESONANCE FREE AND HEAVY DUTY BASKET DESIGN

- ALTERNATIVE IMPEDANCE: 16 OHM

GENERAL SPECIFICATIONS
Nominal diameter
mm (in)
300 (12)
Nominal Impedance
Ohm
8
Minimum impedance
Ohm
6,3
Program power
W
500
AES Power rating
W
250
Sensitivity
dB
97,5
Frequency range
Hz
50 ÷ 3000
Voice coil diameter
mm (in)
65 (2.5)
Chassis material

Steel
Magnet material

Neodymium
Magnet dimensions OD x ID x h
mm (in)
64 x 8 (2.52 x 0.31)
Coil material

Copper
Former material

Glass Fiber
Cone material

Water Resistant Treated Paper + Water Proof Front Side Treatment
Surround material

Polycotton
Xmax
mm (in)
4,7 (0.19)
Xmech
mm (in)
8,8 (0.35)
Gap height
mm (in)
8,2 (0.32)
Voice coil winding height
mm (in)
13,4 (0.53)
Driver displacement volume
l (ft³)
1,6 (0.06)
Recommended Enclosure
l (ft³)
39,6 (1.4)
Recommended Tuning
Hz
55
SMALL SIGNAL PARAMETERS
DC resistance (Re)
Ohm
5,7
Resonance frequency (Fs)
Hz
53
Moving mass (Mms)
g (oz)
52,3 (1.84)
Compliance (Cms)
mm/N
0,174
Force factor (Bxl)
N/A
15,85
Mechanical Q-factor (Qms)

4,31
Electrical Q-factor (Qes)

0,39
Total Q-factor (Qts)

0,36
Equivalent air volume (Vas)
l (ft3)
69,44 (2.45)
Voice coil inductance (Le)
mH
0,77
Diaphragm area (Sd)
cm2 (in.2)
531 (82.3)
Reference efficiency (Eta 0)

2,49 %
Efficiency bandwidth product (EBP)
Hz
136

SHIPPING INFORMATION
Net weight
kg (lb)
2,1 (4.6)
Multipack size W x D x H
mm x mm x mm (in x in x in)
360 x 360 x 175 (14.2 x 14.2 x 6.9)
Multipack weight
kg (lb)
3,5 (7.7)
DIMENSIONS mm (in.)
