Lavoce

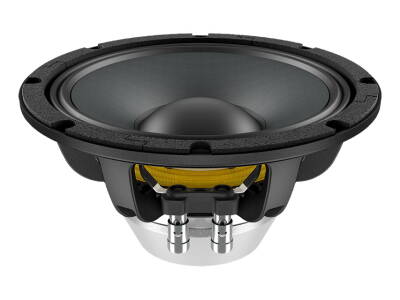

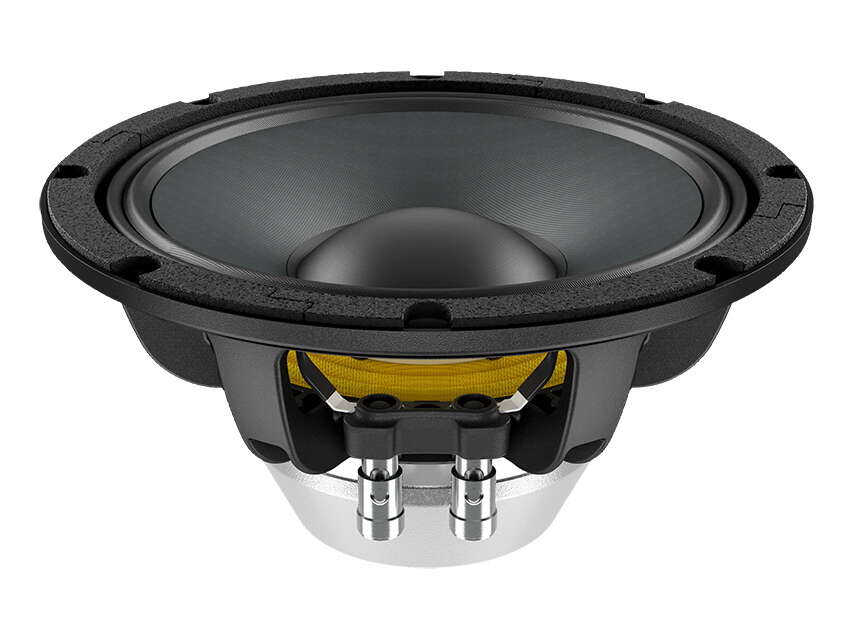

WAN082.00 8" WOOFER

12.126 TL
Fiyat Alarmı

Tükendi

Gelince Haber Ver
12.126 TL
Gelince Haber Ver
GENERAL SPECIFICATIONS
Nominal diameter
mm (in)
200 (8)
Nominal Impedance
Ohm
8
Minimum impedance
Ohm
6
Program power
W
400
AES Power rating
W
200
Sensitivity
dB
94
Frequency range
Hz
80 ÷ 3000
Voice coil diameter
mm (in)
51 (2)
Chassis material

Aluminium
Magnet material

Neodymium
Magnet dimensions OD x ID x h
mm (in)
51 x 9 (2 x 0.35)
Coil material

CCAW
Former material

Glass Fiber
Cone material

Water Resistant Treated Paper
Surround material

Polycotton
Xmax
mm (in)
6,4 (0.25)
Xmech
mm (in)
10,5 (0.41)
Gap height
mm (in)
8,2 (0.32)
Voice coil winding height
mm (in)
16,8 (0.66)
Driver displacement volume
l (ft³)
0,6 (0.02)
Recommended Enclosure
l (ft³)
15 (0.53)
Recommended Tuning
Hz
80
SMALL SIGNAL PARAMETERS
DC resistance (Re)
Ohm
5,2
Resonance frequency (Fs)
Hz
82
Moving mass (Mms)
g (oz)
23,4 (0.83)
Compliance (Cms)
mm/N
0,159
Force factor (Bxl)
N/A
10,29
Mechanical Q-factor (Qms)

5,06
Electrical Q-factor (Qes)

0,6
Total Q-factor (Qts)

0,52
Equivalent air volume (Vas)
l (ft3)
11,62 (0.4)
Voice coil inductance (Le)
mH
0,26
Diaphragm area (Sd)
cm2 (in.2)
226,98 (35.2)
Reference efficiency (Eta 0)

1,04%
Efficiency bandwidth product (EBP)
Hz
137

SHIPPING INFORMATION
Net weight
kg (lb)
2,4 (5.3)
Multipack size W x D x H
mm x mm x mm (in x in x in)
260 x 260 x 137 (10.2 x 10.2 x 5.4)
Multipack weight
kg (lb)
3,1 (6.9)
DIMENSIONS mm (in.)
