Lavoce

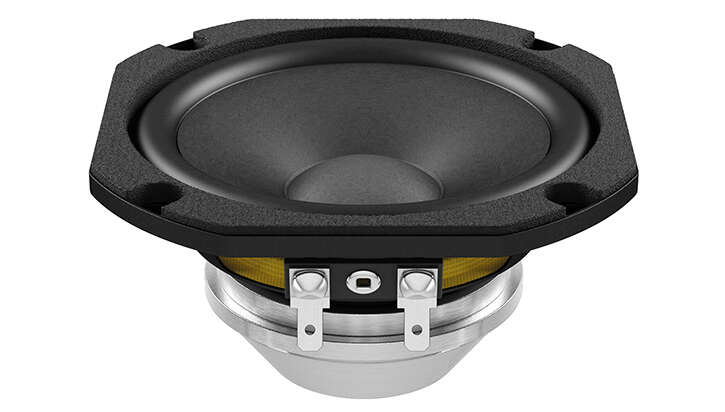

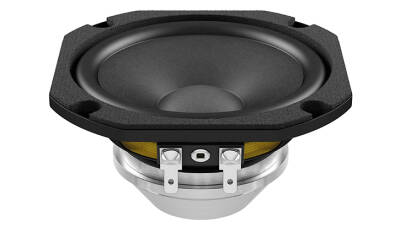

WSN041.00 4 inç 80W Hoparlör

5.189 TL
Fiyat Alarmı

Tükendi

Gelince Haber Ver
5.189 TL
Gelince Haber Ver
FEATURES

- 1 INCH COPPER VOICE COIL

- 91,5 dB/SPL SENSITIVITY

- 80 WATT PROGRAM POWER HANDLING

- FEM OPTIMIZED MOTOR AND SUSPENSIONS

- RESONANCE FREE AND HEAVY DUTY STEEL BASKET DESIGN

- RUBBER SURROUND MATERIAL

- ALTERNATIVE IMPEDANCE: 16 OHM

GENERAL SPECIFICATIONS
Nominal diameter
mm (in)
100 (4)
Nominal Impedance
Ohm
8
Minimum impedance
Ohm
6,5
Program power
W
80
AES Power rating
W
40
Sensitivity
dB
91,5
Frequency range
Hz
100 ÷ 12000
Voice coil diameter
mm (in)
25 (1)
Chassis material

Steel
Magnet material

Neodymium
Magnet dimensions OD x ID x h
mm (in)
65 x 32 x 4 (2.56 x 1.26 x 0.16)
Coil material

Copper
Former material

Polyimide
Cone material

Water Resistant Treated Paper
Surround material

Rubber
Xmax
mm (in)
4 (0.16)
Xmech
mm (in)
5,8 (0.23)
Gap height
mm (in)
5 (0.2)
Voice coil winding height
mm (in)
10,5 (0.41)
Driver displacement volume
l (ft³)
0,125 (0.004)
Recommended Enclosure
l (ft³)
2 (0.071)
Recommended Tuning
Hz
165
SMALL SIGNAL PARAMETERS
DC resistance (Re)
Ohm
5,6
Resonance frequency (Fs)
Hz
104
Moving mass (Mms)
g (oz)
5,9 (0.21)
Compliance (Cms)
mm/N
0,403
Force factor (Bxl)
N/A
8,3
Mechanical Q-factor (Qms)

7,06
Electrical Q-factor (Qes)

0,32
Total Q-factor (Qts)

0,30
Equivalent air volume (Vas)
l (ft3)
1,79 (0.06)
Voice coil inductance (Le)
mH
0,28
Diaphragm area (Sd)
cm2 (in.2)
56 (8.68)
Reference efficiency (Eta 0)

0,61 %
Efficiency bandwidth product (EBP)
Hz
325

SHIPPING INFORMATION
Net weight
kg (lb)
0,5 (1.1)
Multipack size W x D x H
mm x mm x mm (in x in x in)
390 x 345 x 159 (15.3 x 13.6 x 6.2)
Multipack weight
kg (lb)
10,9 (24)
