Lavoce

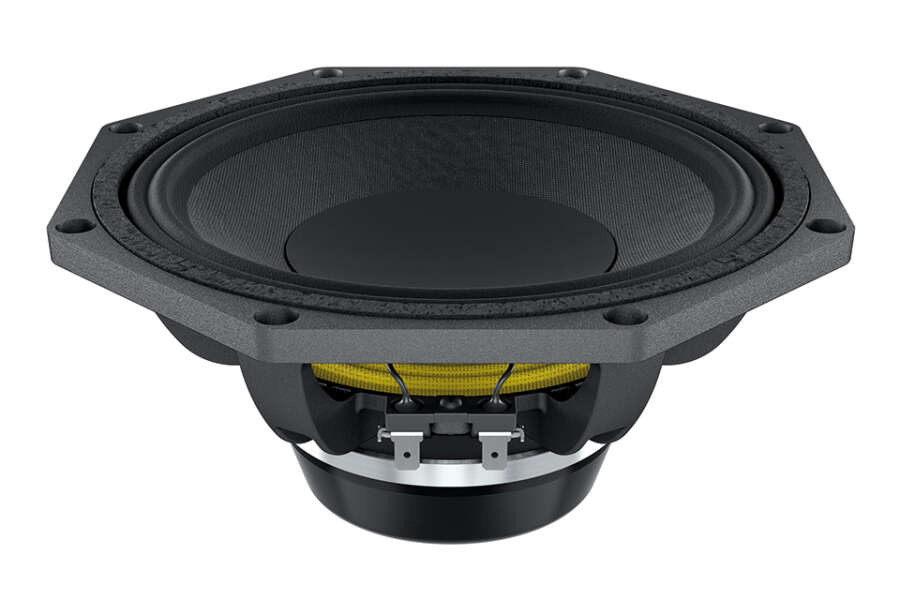

WAN082.01 8" WOOFER

16.670 TL
Fiyat Alarmı

Tükendi

Gelince Haber Ver
16.670 TL
Gelince Haber Ver
GENERAL SPECIFICATIONS
Nominal diameter
mm (in)
200 (8)
Nominal Impedance
Ohm
8
Minimum impedance
Ohm
6
Program power
W
400
AES Power rating
W
200
Sensitivity
dB
96
Frequency range
Hz
80 ÷ 5000
Voice coil diameter
mm (in)
51 (2)
Chassis material

Aluminium
Magnet material

Neodymium
Magnet dimensions OD x ID x h
mm (in)
102 x 60 x 7 (4.02 x 2.36 x 0.28)
Coil material

CCAW
Former material

Kapton
Cone material

Water Resistant Treated Paper + Water Proof Front Side Treatment
Surround material

Polycotton
Xmax
mm (in)
5,8 (0.23)
Xmech
mm (in)
9,8 (0.38)
Gap height
mm (in)
8 (0.31)
Voice coil winding height
mm (in)
15,7 (0.62)
Driver displacement volume
l (ft³)
0,654 (0.023)
Recommended Enclosure
l (ft³)
15 (0.53)
Recommended Tuning
Hz
81
SMALL SIGNAL PARAMETERS
DC resistance (Re)
Ohm
5,1
Resonance frequency (Fs)
Hz
85
Moving mass (Mms)
g (oz)
26,5 (0.93)
Compliance (Cms)
mm/N
0,131
Force factor (Bxl)
N/A
14,45
Mechanical Q-factor (Qms)

4,8
Electrical Q-factor (Qes)

0,35
Total Q-factor (Qts)

0,32
Equivalent air volume (Vas)
l (ft3)
9 (0.32)
Voice coil inductance (Le)
mH
0,36
Diaphragm area (Sd)
cm2 (in.2)
220 (34.1)
Reference efficiency (Eta 0)

1,55 %
Efficiency bandwidth product (EBP)
Hz
243

SHIPPING INFORMATION
Net weight
kg (lb)
2,3 (5.1)
Multipack size W x D x H
mm x mm x mm (in x in x in)
270 x 270 x 140 (10.6 x 10.6 x 5.5)
Multipack weight
kg (lb)
2,9 (6.4)
DIMENSIONS mm (in.)
