Lavoce

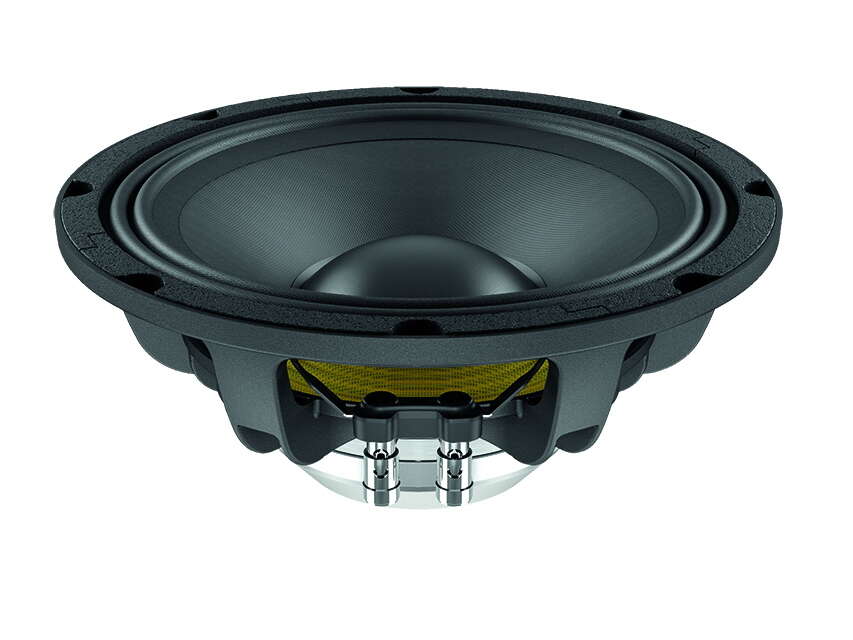

WAN103.01 10" WOOFER

25.723 TL
Fiyat Alarmı

Tükendi

Gelince Haber Ver
25.723 TL
Gelince Haber Ver
GENERAL SPECIFICATIONS
Nominal diameter
mm (in)
250 (10)
Nominal Impedance
Ohm
8
Minimum impedance
Ohm
6,6
Program power
W
900
AES Power rating
W
450
Sensitivity
dB
99
Frequency range
Hz
70 ÷ 3500
Voice coil diameter
mm (in)
75 (3)
Chassis material

Aluminium
Magnet material

Neodymium
Magnet dimensions OD x ID x h
mm (in)
120 x 80 x 10 (4.72 x 3.15 x 0.39)
Coil material

CCAW
Former material

Kapton
Cone material

Water Resistant Treated Paper + Water Proof Front Side Treatment
Surround material

Polycotton
Xmax
mm (in)
5 (0.2)
Xmech
mm (in)
10,1 (0.4)
Gap height
mm (in)
9,5 (0.37)
Voice coil winding height
mm (in)
14,7 (0.58)
Driver displacement volume
l (ft³)
1,6 (0.06)
Recommended Enclosure
l (ft³)
26,3 (0.93)
Recommended Tuning
Hz
97
SMALL SIGNAL PARAMETERS
DC resistance (Re)
Ohm
5,5
Resonance frequency (Fs)
Hz
70
Moving mass (Mms)
g (oz)
39,6 (1.4)
Compliance (Cms)
mm/N
0,129
Force factor (Bxl)
N/A
20,57
Mechanical Q-factor (Qms)

5,94
Electrical Q-factor (Qes)

0,23
Total Q-factor (Qts)

0,22
Equivalent air volume (Vas)
l (ft3)
22,29 (0.79)
Voice coil inductance (Le)
mH
0,72
Diaphragm area (Sd)
cm2 (in.2)
350 (54.3)
Reference efficiency (Eta 0)

3,28 %
Efficiency bandwidth product (EBP)
Hz
304

SHIPPING INFORMATION
Net weight
kg (lb)
3,1 (6.8)
Multipack size W x D x H
mm x mm x mm (in x in x in)
290 x 300 x 150 (11.4 x 11.8 x 5.9)
Multipack weight
kg (lb)
3,8 (8.4)
DIMENSIONS mm (in.)
