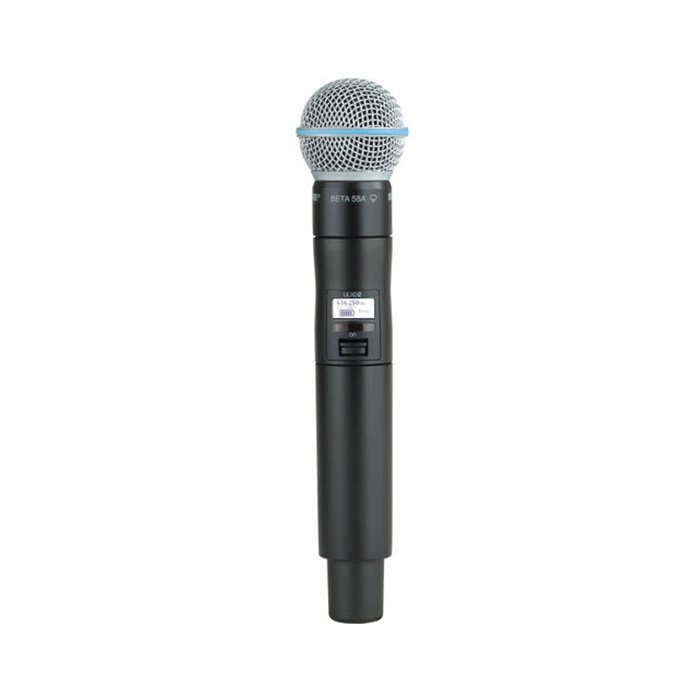

Shure ULXD2/B58 Handheld Transmitter

The ULXD2 Handheld Transmitter with Beta 58A Microphone Cartridge from Shure is designed to be compatible with Shure's ULX-D wireless systems. It features an aluminum body with an integrated antenna that is capable of AES 256-bit encryption for secure transmission. It is tuned to Shure's L50 frequency band and transmits on a range of 632 to 696 MHz. It includes a Shure Beta 58A microphone capsule.

Transmitter

Gain Offset Range 0 to 21 dB (in 3 dB Steps)

Frequency Band L50: 632 to 696 MHz

Transmitter Output: 1/10/20 mW

Battery Type 2x LR6 AA Batteries 1.5 V

Shure SB900 Rechargeable Li-Ion

Configuration Unbalanced

Maximum Input Level Dependent on Microphone Capsule

RF Output Antenna Type: Integrated Single Band Helical

Occupied Bandwidth: < 200 kHz

Modulation Type: Shure Proprietary Digital

Power: Varies by Region

Dimensions (Ø x L) 2.0 x 10.1" (51 x 256 mm)

Weight 12 oz (340 g)

Microphone

Type Dynamic (Moving Coil)

Frequency Response 50 Hz to 16 kHz

Polar Pattern Supercardioid, rotationally symmetrical about microphone axis, uniform with frequency

Output Level Open Circuit Voltage: -51.5 dBV/Pa* (2.6 mV) *1 Pa = 94 dB SPL

Packaging Info

Package Weight 1.4 lb

Box Dimensions (LxWxH) 12.7 x 4.8 x 3.4"
