| System Type | 12-inch 2 way Passive Speaker, Bass Reflex |
|---|---|
| LF Driver | 12-inch HH Designed High Performance Driver, 2.5-inch Voice Coil |
| HF Driver | 1.4-inch Celestion CDX1-1445 |
| Nominal System Impedance | 8 ohm |
| Power | 300W AES, 600W Continuous, 1200W Peak |
| Recommended Amplifer | 600-1200W @ 8 Ohms |
| Sensitivity (1W/1M) | 98 dB |
| Max SPL | 123 dB, 129 dB (Peak) (1m) |
| Frequency Response (-10) | 36 - 20kHz |
| Frequency Response (-3) | 42 - 18kHz |

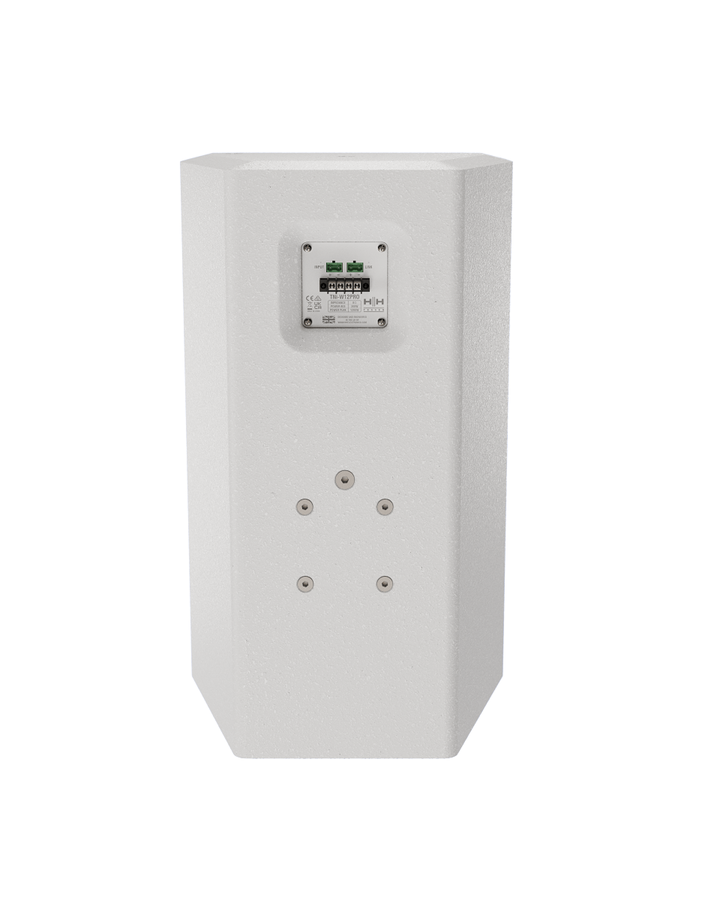

| Input Link Connector | Euro Block Connector and M4 Barrier Strip Terminal (7.62mm Pitch) |
| Horiz. Dispersion Angle 1000Hz | 90° |
| Vertical Dispersion Angle 1000Hz | 60° |
|---|---|
| Crossover Frequency | 2.2KHz |
| Main Construction Material | Robust all wood construction (15mm plywood) |
| Finish | Hard wearing spatter finish (White or Black option) |
| Grille | Powdercoated steel with acoustic foam backing |
| Mounting Bracket | 4 x M8 mounting points for optional HH-BRK30 |
| Mounting Points | 7 x M10 Penn-Elcom fly points (3 on top face, 2 on side face, 1 on rear, 1 on bottom) |
| Unit Dimensions (Hwd) | 575 x 345 x 337mm, 22.6" x 13.6" x 13.3" |
| Unit Weight | 16Kg, 35.3 lbs |
| Carton Dimensions (Hwd) | 670 x 440 x 430mm, 26.4" x 17.3" x 16.9" , 0.127 M3 |
| Packed Weight | 18Kg, 39.7 lbs |
