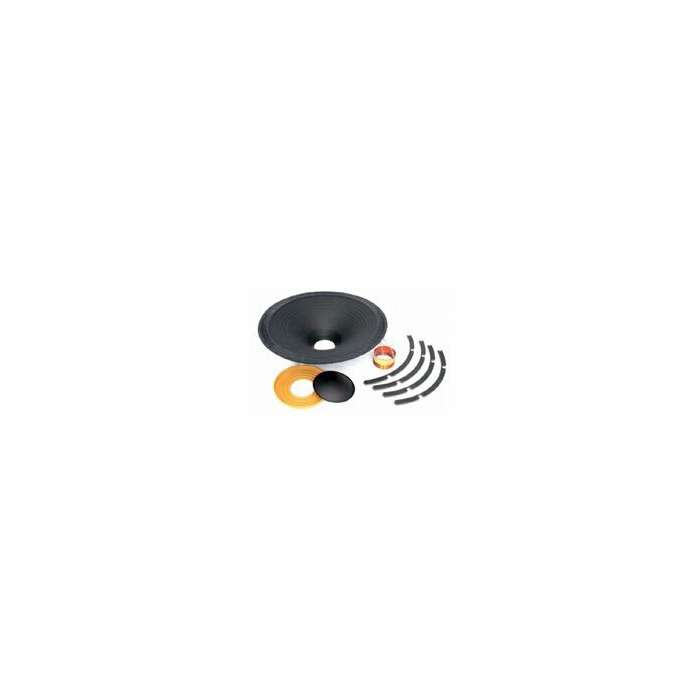

Eminence - Omega Pro 18 Tamir Takımı

Name: Omega Pro 18 Tamir Takımı
Brand: Eminence
SKU: 47769
Price: 6210.00 TRY
Availability: InStock

Paylaş:

Stok Kodu

47769

Stok Durumu

Bilgi Alınız

Ürün Özellikleri
Ödeme Seçenekleri
Yorumlar (0)
Beni Ara
Hızlı Mesaj
Öneri Kutusu
Tavsiye Et

SPECIFICATION
Nominal Basket Diameter	18", 457 mm
Nominal Impedance*	8 Ω
Power Rating**
Watts	800 W
Music Program	1600 W
Resonance	25 Hz
Usable Frequency Range	40 Hz - 0.8 kHz
Sensitivity***	97 dB
Magnet Weight	109 oz.
Gap Height	0.375", 9.5 mm
Voice Coil Diameter	4", 102 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)	25 Hz
DC Resistance (Re)	5.2 Ω
Coil Inductance (Le)	1.67m H
Mechanical Q (Qms)	8.18
Electromagnetic Q (Qes)	0.32
Total Q (Qts)	0.31
Compliance Equivalent Volume (Vas)	548.7 liters / 19.38 cu.ft.
Peak Diaphragm Displacement Volume (Vd)	556 cc
Mechanical Compliance of Suspension (Cms)	0.29 mm/N
BL Product (BL)	18.8 T-M
Diaphragm Mass Inc. Airload (MMs)	137 grams
Efficiency Bandwidth Product (EBP)	79
Maximum Linear Excursion (Xmax)	4.8 mm
Surface Area of Cone (Sd)	1159 cm2
Maximum Mechanical Limit (Xlim)	16.0 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed	N/a
Vented	96.00-198.00 liters / 3.40-7.00 cu.ft.
Driver Volume Displaced	0.234 cu.ft. / 6.62 liters
Overall Diameter	18", 457.2 mm
Baffle Hole Diameter	16.56", 420.6 mm
Front Sealing Gasket	Yes
Rear Sealing Gasket	Yes
Mounting Holes Diameter	0.28", 7.1mm
Mounting Holes B.C.D.	17.25", 438.2mm
Depth	8.15", 207 mm
Net Weight	25.2 lbs, 11.43 kg
Shipping Weight	28.9 lbs, 13.11 kgs
MATERIALS OF CONSTRUCTION
Coil Construction	Copper voice coil
Coil Former	Polyimide former
Magnet Composition	Ferrite magnet
Core Details	Vented and extended core

Basket Materials	Die-cast aluminum basket
Cone Composition	Paper cone
Cone Edge Composition	Cloth cone edge
Dust Cap Composition	Solid composition paper dust cap
