Shure MX410/S Minyatür Gooseneck Mikrofon

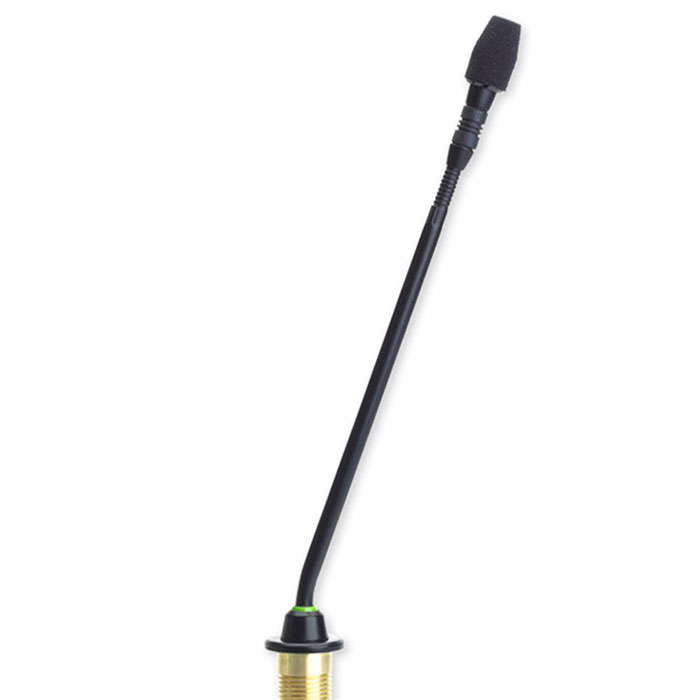

The Shure MX410/S 10" Gooseneck Microphone with Surface Mount Preamplifier, Supercardioid Capsule is a flexible speech microphone designed for applications in meeting rooms, lecture halls, houses of worship and anywhere a high-quality speech microphone is desired. This 10" gooseneck microphone features interchangeable capsules and a choice of a desk-mount preamplifier or direct flush-mounting into a table surface. Wireless options enable full compatibility with the Shure SLX series wireless systems.

Shure MX410/S Features

Supercardioid polar patterns

Bi-color status indicator

Logic input/output for remote LED and mute control

Surface-mount and wired or wireless desktop base options

CommShield Technology for improved RF filtering

Frequency Response50 to 17000 HzPolar PatternSupercardioidOutput ImpedanceEIA Rated at 150 Ohms (170 Ohms actual)Output ConfigurationActive balancedSensitivitySupercardioid: -34 dBV/Pa (21 mV) (at 1 kHz, open circuit voltage)Maximum SPLSupercardioid: 120 dB(1 kHz at 1% THD, 1 kilohm load)Equivalent Output Noise (A-weighted)Supercardioid: 27 dB SPLSignal-to-Noise RatioSupercardioid: 68 dB (referenced at 94 dB SPL at 1 kHz)Dynamic Range (1 kilohm load at 1 kHz)3 dBCommon Mode Rejection (10 Hz to 100 kHz)45 dB minimumPreamplifier Output Clipping Level-8 dBV (0.4 V)Logic ConnectionsLED IN: Active low (=1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V

LOGIC OUT: Active low (=1.0V), syncs up to 20mA, TTL compatible

Absolute maximum voltage: -0.7V to 50V (up to 50V through 3 kilohms)Mute Switch Attenuation-50 dB minimumOperating Temperature-18 to 57 deg. C (0 to 135 deg. F)Storage Temperature-29 to 74 deg. C (-20 to 165 deg. F)Relative Humidity0 to 95%Power Requirements48 to 52 Vdc phantom, 8.0 mAMic Length10 inch (254 mm)Weight0.150 lbs (0.068 kg)Mfr #MX410/SSKUSHMX410S
