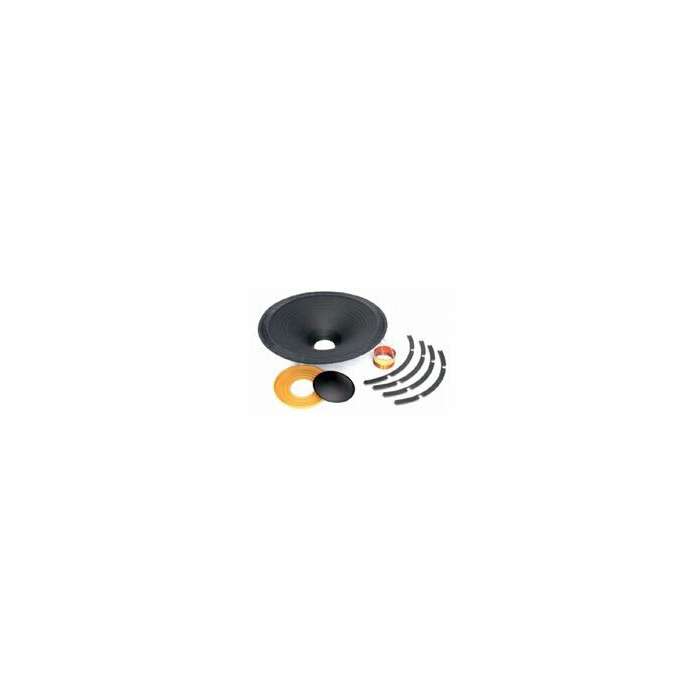

Eminence - Kappa Pro 15LF Tamir Takımı

Paylaş:
Stok Kodu
:
47766
Stok Durumu
:
Bilgi Alınız
  • Ürün Özellikleri
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Hızlı Mesaj
  • Öneri Kutusu
  • Tavsiye Et
  • SPECIFICATION
    Nominal Basket Diameter15", 381 mm
    Nominal Impedance*8 Ω
    Power Rating**
    Watts600 W
    Music Program1200 W
    Resonance39 Hz
    Usable Frequency Range38 Hz - 2.7 kHz
    Sensitivity***99 dB
    Magnet Weight95 oz.
    Gap Height0.375", 9.5 mm
    Voice Coil Diameter3", 76 mm
    THIELE & SMALL PARAMETERS
    Resonant Frequency (fs)39 Hz
    DC Resistance (Re)5.4 Ω
    Coil Inductance (Le)1.27m H
    Mechanical Q (Qms)6.08
    Electromagnetic Q (Qes)0.41
    Total Q (Qts)0.38
    Compliance Equivalent Volume (Vas)159 liters / 5.62 cu.ft.
    Peak Diaphragm Displacement Volume (Vd)471 cc
    Mechanical Compliance of Suspension (Cms)0.15 mm/N
    BL Product (BL)18.6 T-M
    Diaphragm Mass Inc. Airload (MMs)105 grams
    Efficiency Bandwidth Product (EBP)95
    Maximum Linear Excursion (Xmax)5.5 mm
    Surface Area of Cone (Sd)856.3 cm2
    Maximum Mechanical Limit (Xlim)10.4 mm
    MOUNTING INFORMATION
    Recommended Enclosure Volume
    SealedN/a
    Vented62.00-193.00 liters / 2.20-6.80 cu.ft.
    Driver Volume Displaced0.145 cu.ft. / 4.12 liters
    Overall Diameter15.16", 385.1 mm
    Baffle Hole Diameter13.87", 352.3 mm
    Front Sealing GasketYes
    Rear Sealing GasketYes
    Mounting Holes Diameter0.25", 6.4mm
    Mounting Holes B.C.D.14.56", 369.8mm
    Depth6.38", 162.1 mm
    Net Weight20 lbs, 9.07 kg
    Shipping Weight22.3 lbs, 10.12 kgs
    MATERIALS OF CONSTRUCTION
    Coil ConstructionCopper voice coil
    Coil FormerPolyimide former
    Magnet CompositionFerrite magnet
    Core DetailsVented core

    Basket MaterialsPressed steel basket
    Cone CompositionPaper cone
    Cone Edge CompositionCloth cone edge
    Dust Cap CompositionSolid composition paper dust cap
    Garanti Bilgisi
    :
    24 Ay
