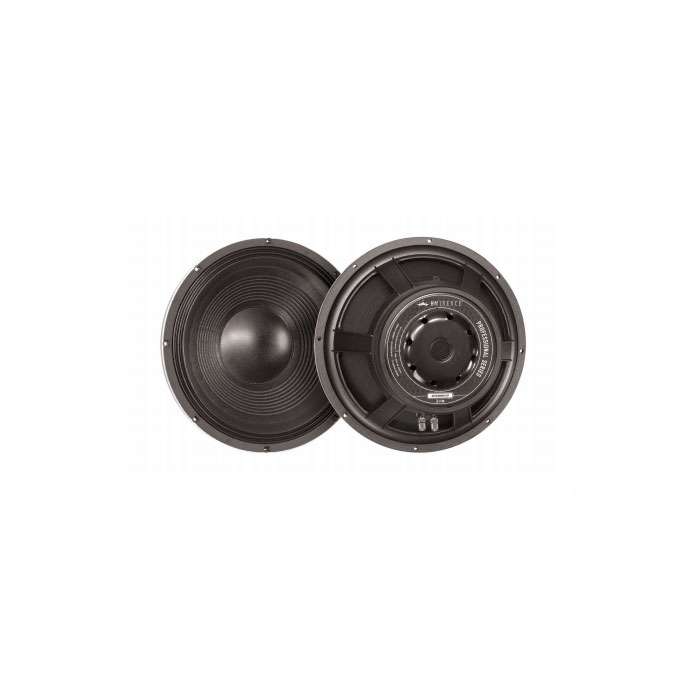

Omega Pro 15 Low Hoparlör 15 inç 800W

Ürün Kodu : 47749
16.900 TL
Fiyat Alarmı
16.900 TL
SPECIFICATION
Nominal Basket Diameter15", 381 mm
Nominal Impedance*8 Ω
Power Rating**
Watts800 W
Music Program1600 W
Resonance33 Hz
Usable Frequency Range51 Hz - 1.7 kHz
Sensitivity***97.3 dB
Magnet Weight109 oz.
Gap Height0.375", 9.5 mm
Voice Coil Diameter4", 102 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)33 Hz
DC Resistance (Re)5.28 Ω
Coil Inductance (Le)1.04m H
Mechanical Q (Qms)5.69
Electromagnetic Q (Qes)0.33
Total Q (Qts)0.32
Compliance Equivalent Volume (Vas)258.5 liters / 9.13 cu.ft.
Peak Diaphragm Displacement Volume (Vd)411 cc
Mechanical Compliance of Suspension (Cms)0.25 mm/N
BL Product (BL)17.5 T-M
Diaphragm Mass Inc. Airload (MMs)94 grams
Efficiency Bandwidth Product (EBP)99
Maximum Linear Excursion (Xmax)4.8 mm
Surface Area of Cone (Sd)856.3 cm2
Maximum Mechanical Limit (Xlim)12.2 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
SealedN/a
Vented57.00-108.00 liters / 2.00-3.80 cu.ft.
Driver Volume Displaced0.152 cu.ft. / 4.31 liters
Overall Diameter15.21", 386.3 mm
Baffle Hole Diameter14", 355.6 mm
Front Sealing GasketYes
Rear Sealing GasketYes
Mounting Holes Diameter0.28", 7.1mm
Mounting Holes B.C.D.14.56", 369.8mm
Depth6.35", 161.3 mm
Net Weight22.7 lbs, 10.3 kg
Shipping Weight25.2 lbs, 11.43 kgs
MATERIALS OF CONSTRUCTION
Coil ConstructionCopper voice coil
Coil FormerPolyimide former
Magnet CompositionFerrite magnet
Core DetailsVented and extended core

Basket MaterialsDie-cast aluminum basket
Cone CompositionPaper cone
Cone Edge CompositionCloth cone edge
Dust Cap CompositionSolid composition paper dust cap
Ebat
15" - 38 cm
Tip
Bass
Watt Peak - Editör
800
Neodymium
Hayır
