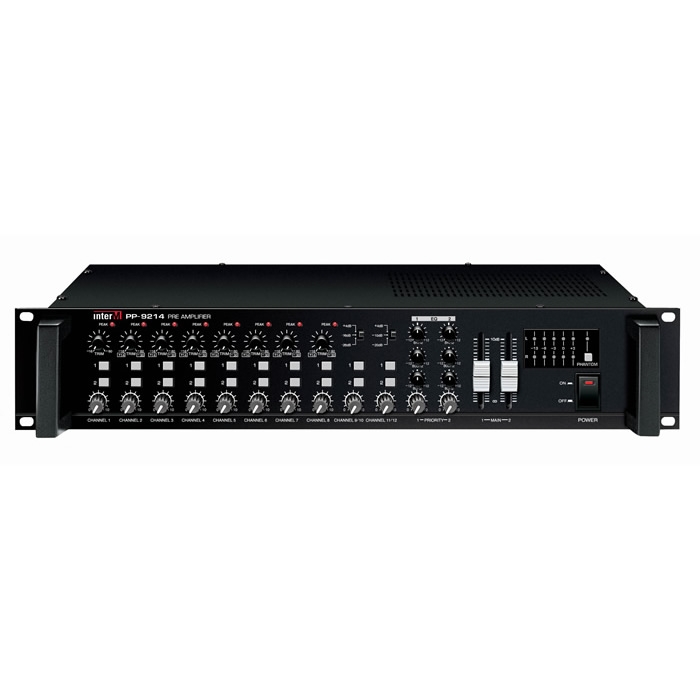

PP 9214 Pre Anfi
- VERSATILE AND COMPACT
Flexible mix architecture in a space-saving two RU package.
- TWELVE INPUTS AND TWO OUTPUTS
Eight mono inputs and two stereo inputs, plus a stereo output.
- INPUT AND OUTPUT METERING
Peak meters on input channels, plus multi-segment LED metering to monitor
- THREE-BAND EQ
Three-Band EQ control on output section
- ON-BOARD PHANTOM POWER
Built-in +18VDC phantom power for condenser microphones
- AC OR DC OPERATION
Runs on 100-120VAC, 220-240VAC, or 24VDC for true portability.
Teknik Özellikler:
- Frequency Response (+1/-3dB): 20Hz-20kHz
- T.H.D: Less than 0.5%
- Input Sensitivity/Impedance
- Mic Input 1-8: -60dB/600Ω Balanced
- Line Input 2-8: -30dB/10kΩ Balanced
- Line Input 9-12: +4dB, -10dB, -20dB/10kΩ Unbalanced
- Output/Impedance
- Ch 1-2 (Master): +4dB/600Ω Balanced
- Rec Out: -10dB/10kΩ Unbalanced
- Insert: 0dB/10kΩ Unbalanced
- Residual Noise
- All Faders Min: 90dB
- All Faders Min, Master Fader Max: 70dB
- Crosstalk
- Input to Output: 70dB
- Adjacent: 70dB
- Power Sourse: 100–120VAC or 220–240VAC; 50/60Hz, 24VDC Auto-Switching
- (Supplied AC mains transformer depends on country requirements)
- Power Consumption: 9.8W
- Weight: 5Kg/11Ib
- Dimensions: 482(W) x 88(H) x 280(D)mm/19(W) x 3.5(H) x 11(D)in
