Frekans Tepkisi (-10 dB): 70 Hz - 23 kHz
Midrange (±1.5 dB, typical): 130 Hz - 14 kHz
100 Hr Power Capacity: 200 Watts Continuous Program Power
100 Watts Continuous Pink Noise
Frekans Açısı: 100° x 100°
Hassasiyet: 87 dB SPL, 1W @ 1 m (3.3ft)
Nominal Coverage: 100° x 100°
Maximum SPL @ 1m: 113 dB continuous peak pink noise
107 dB continuous average pink noise
103 dB continuous average music or speech
Empedans: 8 ohms
Minimum Empedans: 6.7 ohms at 230 Hz
Crossover Tipi: Second Order Lowpass, Second Order Highpass, Complexü Optimization for Maximally Flat Response
Transformer Taps:
70V: 60W, 30W, 15W, 7.5W taps (Taps #4,#3, #2 & #1)
100V: 60W, 30W, 15W taps (Taps #3, #2, & #1)
Transducers:
Low-Frequency: 130 mm (5.25 in) polypropylene-coated paper with WeatherEdge
surround, 25 mm (1 in) voicecoil on kapton former
High-Frequency: 20 mm (.75 in) titanium coated PEI
Physical:
Materyal: High Impact polystyrene
Overload Protection: Full-range power limiting to protect network and transducers. Internal
fuse to protect during exceptional overload condition
Environmental: Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IEC
529 IP-X4 splashproof rating
Termination: Screw-down terminal strip, zinc-plated copper base, nickel plated
metal screws/washers, accepts up to 9 mm outside 4 mm inside open
lug (#6, #8 or #10), plus bare wire. (up to 12 AWG)
Safety Agency Rating: Transformer is listed per UL1876

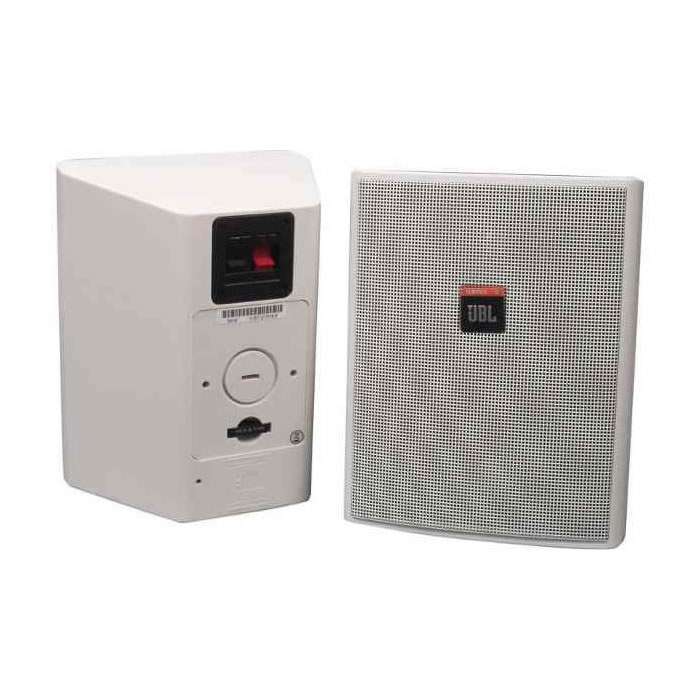

Colors: Black or white (-WH)
Rotation: Against wall on InvisiBall Base: 37° vertical 44° horizontal
On bracket: 44° all directions
Dimensions (H x W x D): 236 x 186 x 159 mm (9.3 x 7.4 x 6.3 in)
Net Weight (ea): 4.0 kg (9 lbs)
