Toa - BS-1030 B Anons Tipi Hoparlör

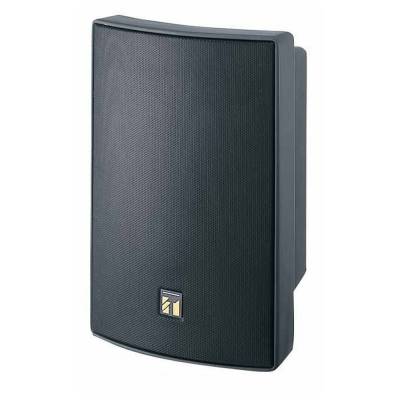

The BS-1030B is a small, 2-way bass-reflex type speaker featuring a wide frequency range suitable for use for announcements and music playback. The BS-1030B can be used for both high-impedance and low-impedance applications. The speaker's splash-proof construction permits it to be installed under the eaves where the speaker is not directly exposed to rain.

 Brochure  Photo

Specification

Enclosure 2-way bass-reflex type

Rated Input 30 W

Rated Impedance 8 Ω

100 V line: 330 Ω (30 W), 500 Ω (20 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W)

70 V line: 170 Ω (30 W), 250 Ω (20 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W)

Sound Pressure Level 90 dB (1 W, 1 m)

Frequency Response 80 Hz - 20 kHz

Speaker Component 12 cm cone-type + dome-type

Speaker Cord 2-core cabtyre cord with diameter of 6 mm

Operating Temperature -10 ℃ to +50 ℃

Water Protection IPX4 (can be installed vertically or horizontally.*)

Finish Enclosure: ABS resin, black (RAL9011 GRAPHITE BLACK), paint

Net: Surface treated steel plate, black (RAL9011 GRAPHITE BLACK), powder coating

Bracket: Surface treated steel plate, black equivalent to RAL9011 GRAPHITE BLACK,

powder coating

Dimension 196 (W) × 290 (H) × 150 (D) mm (unit only)

Weight 2.5 kg (unit only)

Accessory Bracket…1, Bracket mounting screw…2, Bracket mounting washer…2

Option Applicable bracket: WCB-13B, SP-410

Applicable stand: ST-16A
