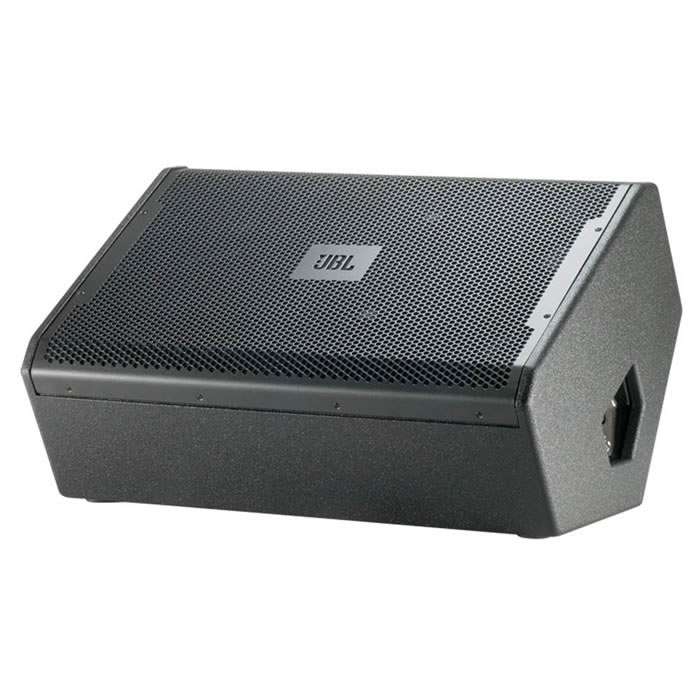

Jbl By Harman - VRX 915 M 3200 Watt 15 inç Pasif Monitör Kabin



Power Rating 800 W / 1600 W / 3200W

Frequency Range 60 Hz - 20 kHz

Dimensions

(H x W x D) 629 mm x 432 mm x 324 mm (375 mm stage height)

24.75 in x 17 in x 12.75 in (14.75" stage height)

Frequency Response 70 Hz - 20 kHz

Coverage Pattern 50° x 90° nominal

Crossover Modes Passive / Bi-amp

Crossover Frequency 1.1 kHz

System Maximum SPL 127 dB SPL continuous (133 dB SPL peak)

System Sensitivity (1w @ 1m) 98 dB SPL

LF Driver 1 x JBL 2265H 380 mm (15 in) Differential Drive® woofer 8 Ohms

HF Driver 1 x JBL 2452H, 100 mm (4.0 inch) diameter voice coil, 38 mm (1.5 inch) exit, neodymium magnet compression driver 8 Ohms

Nominal Impedance 8 ohms

Active Tunings Tunings available at www.jblpro.com

Enclosure Symmetrical stage monitor, 15/18 mm, plywood

Finish Black DuraFlex™ finish

Grille Powder coated, black, 16 gauge perforated steel with acoustically transparent black screen backing

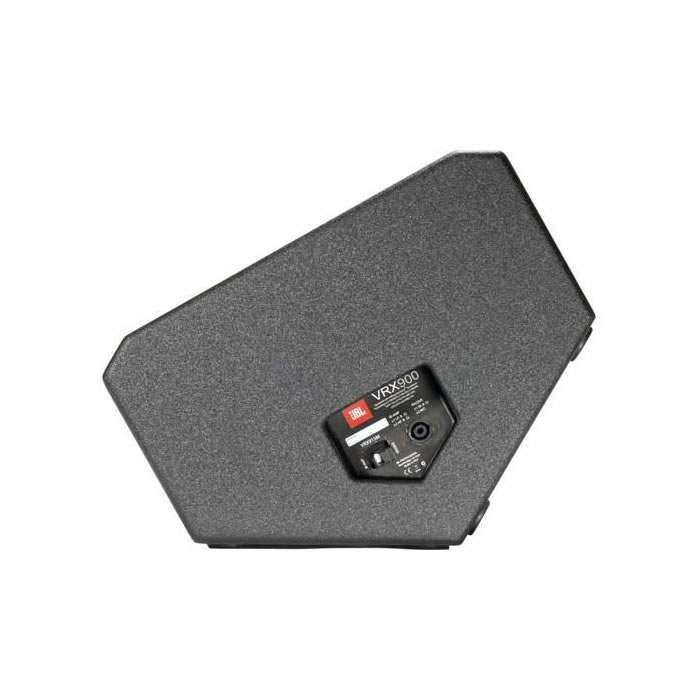

Input Connectors Neutrik® Speakon® NL-4 (x2), one on each end

Net Weight 21 kg (46.0 lb)
