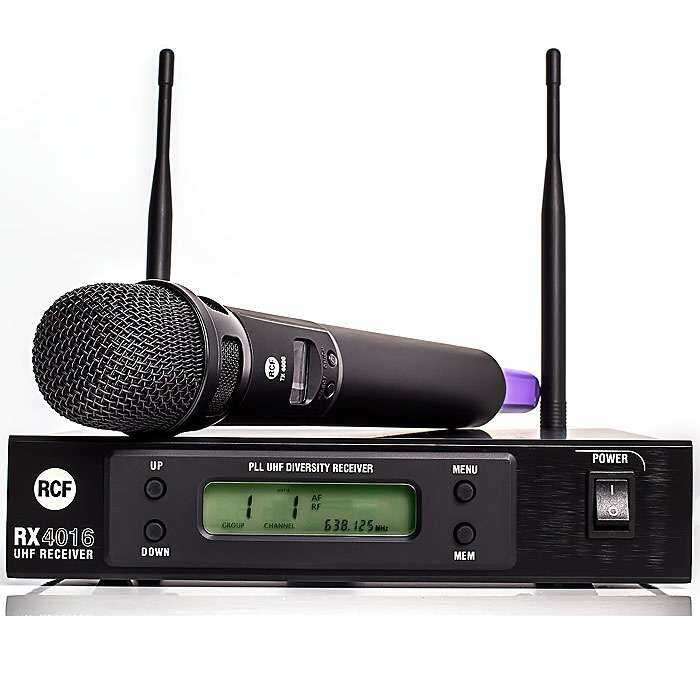

TX 4016 kit consists of:
-- a RX 4016 receiver (with AC / DC adapter, 2 antennas and a 1.5 m cable with 1/4” jack plugs)
-- a TX 4000 transmitter / handheld dynamic microphone
Friendly user interface with front panel LCD display
Auto-scan function for easy operation
RF signal switching ‘diversity' control
3 output level selection
Squelch control
PLL (phase-locked loop) UHF
Use of up to 16 channels / frequencies (out of 144) simultaneously
Soft-touch painting for comfortable use
3 RF output power level selection
Mute function
General Specifications
Type: Lavalier wireless microphone - diversity system
Frequency Response: 50 Hz ÷ 50 kHz
Signal/noise ratio: > 90 dB
Total harmonic distortion: < 0.8%%
Connector: Jack, XLR 3 pôles
Power Requirements
Operating voltage: 15 V dc (receiver) - 2 x AA type (transmitter) V
Physical Specifications
Height: 44 / 1.73 mm/inch
Width: 210 / 8.26 mm/inch
Depth: 155 / 6.10 mm/inch
Net Weight: 0.99 / 2.18 kg/lbs
Shipping information
Package height: 60 / 2.36 mm/inch
Package width: 390 / 15.35 mm/inch
Package depth: 27 / 10.62 mm/inch
Shipping weight: 1.5 / 3.30 kg/lbs
