HH Electronics - TNI-W8PRO-WH 8-inch 2 way Passive Speaker

Name: TNI-W8PRO-WH 8-inch 2 way Passive Speaker
Brand: HH Electronics
SKU: T60128
Price: 28804.05 TRY
Availability: InStock

Paylaş:

Stok Kodu

60128

Stok Durumu

Var

System Type	8-inch 2 way Passive Speaker, Bass Reflex
LF Driver	8-inch HH Designed High Performance Driver, 2-inch Voice Coil
HF Driver	1-inch Celestion CDX1-1070
Nominal System Impedance	8 ohm
Power	200W AES, 400W Continuous, 800W Peak
Recommended Amplifer	400-800W @ 8 Ohms
Sensitivity (1W/1M)	96 dB
Max SPL	119 dB SPL, 125 dB SPL (Peak)
Frequency Response (-10)	52 - 20kHz
Frequency Response (-3)	63 - 18kHz

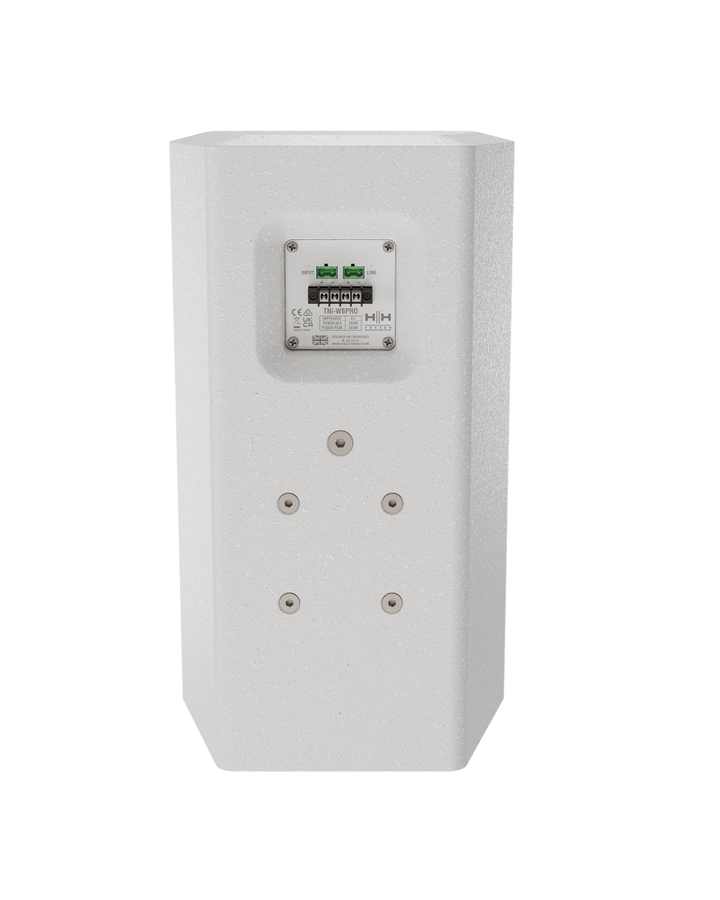

Input Link Connector	Euro Block Connector and M4 Barrier Strip Terminal (7.62mm Pitch)
Horiz. Dispersion Angle 1000Hz	90°

Vertical Dispersion Angle 1000Hz	60°
Crossover Frequency	2.2KHz
Cabinet	Robust all wood construction (15mm plywood)
Finish	Hard wearing spatter finish (White or Black option)
Grille	Powdercoated steel with acoustic foam backing

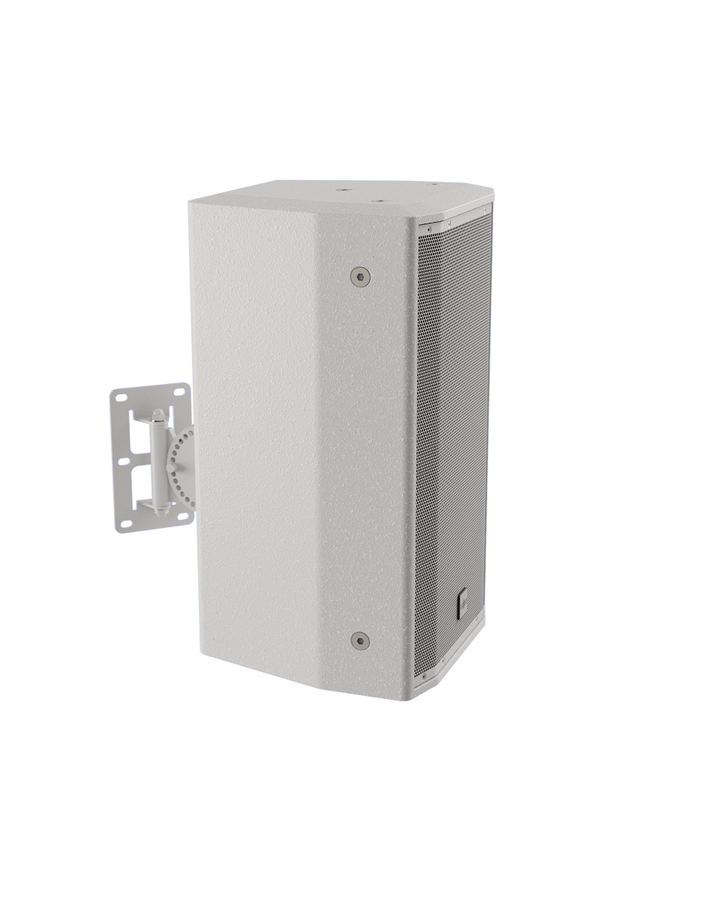

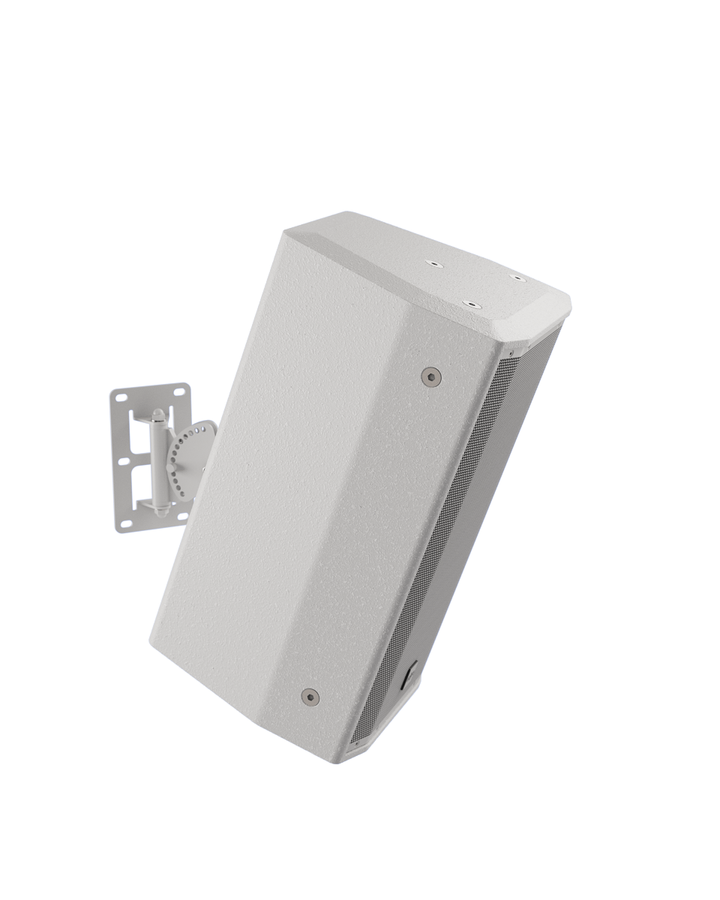

Mounting Bracket	4x M8 mounting points for optional HH-BRK30
Mounting Points	7x M10 Penn-Elcom fly points (3 on top face, 2 on side face, 1 on rear, 1 on bottom)
Unit Dimensions (Hwd)	474 x 270 x 257mm, 18.7" x 10.6" x 10.1"
Unit Weight	10Kg, 22 lbs
Carton Dimensions (Hwd)	570 x 370 x 350mm, 22.4" x 14.6" x 13.8" , 0.074 M3
Packed Weight	12Kg, 26.5 lbs
