| System Type | 8-inch 2 way Passive Speaker, Bass Reflex |
|---|---|
| LF Driver | 8-inch HH Designed High Performance Driver, 2-inch Voice Coil |
| HF Driver | 1-inch Celestion CDX1-1070 |
| Low Nominal System Impedance | 8 ohm |
| Power | 200W AES, 400W Continuous, 800W Peak |
| Recommended Amplifer | 400-800W @ 8 Ohms |
| Sensitivity (1W/1M) | 96 dB |
| Max SPL | 119 dB, 125 dB (Peak) |
| Frequency Response (-10) | 52 - 20kHz |
| Frequency Response (-3) | 63 - 18kHz |

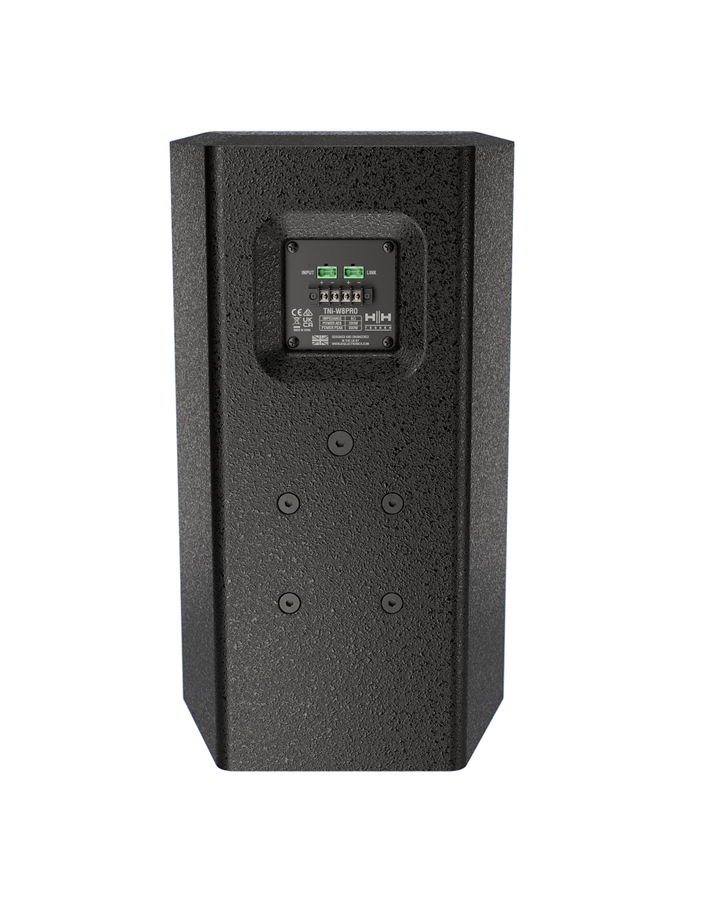

| Input Link Connector | Euro Block Connector and M4 Barrier Strip Terminal (7.62mm Pitch) |
| Horiz. Dispersion Angle 1000Hz | 90° |
| Vertical Dispersion Angle 1000Hz | 60° |
|---|---|
| Crossover Frequency | 2.2KHz |
| Cabinet | Robust all wood construction (15mm plywood) |
| Finish | Hard wearing spatter finish (White or Black option) |
| Grille | Powdercoated steel with acoustic foam backing |

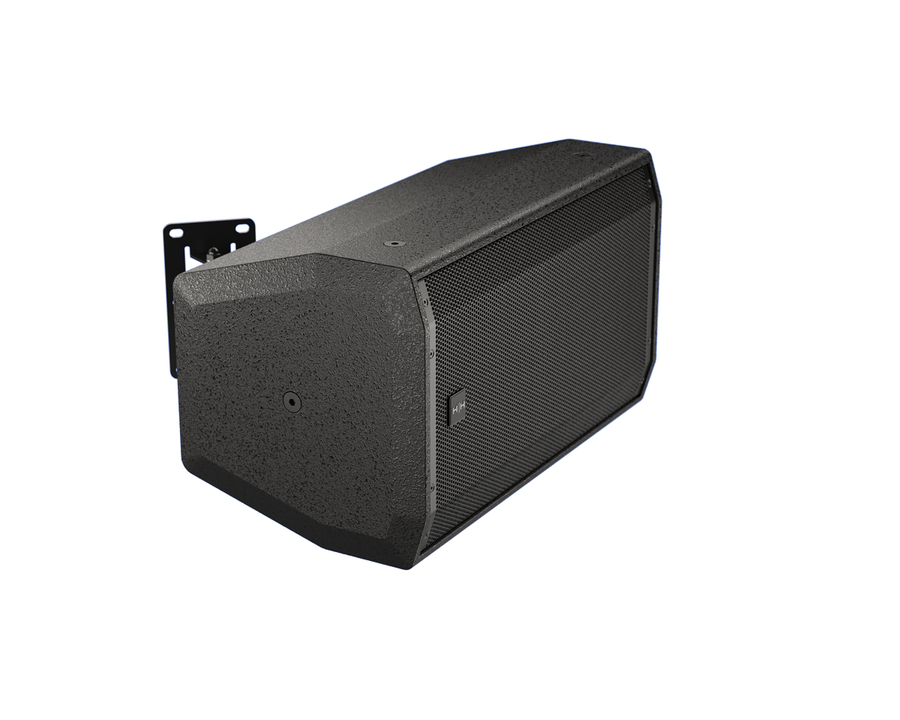

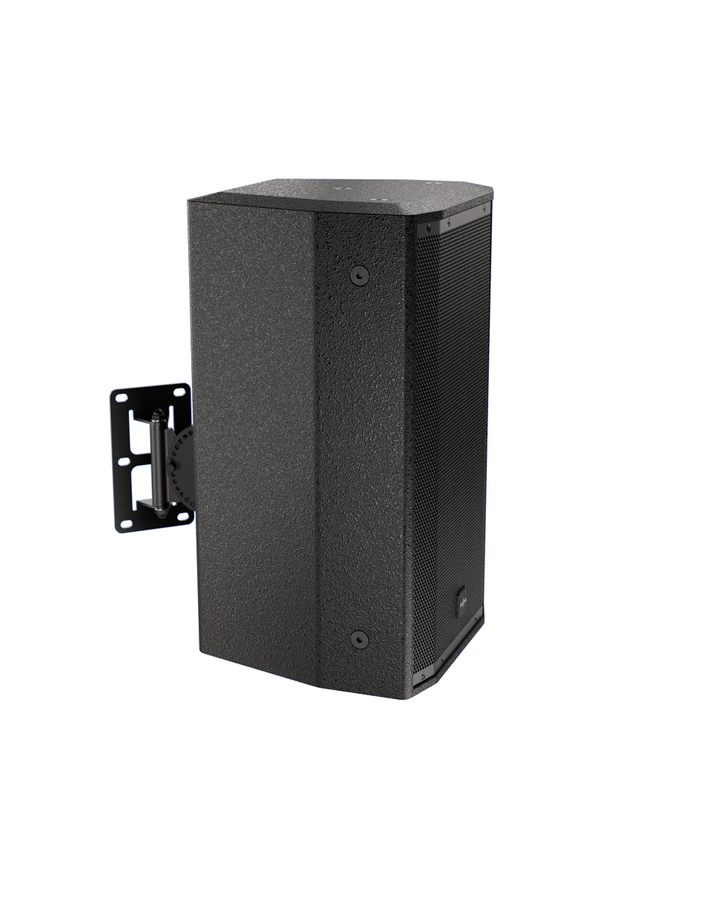

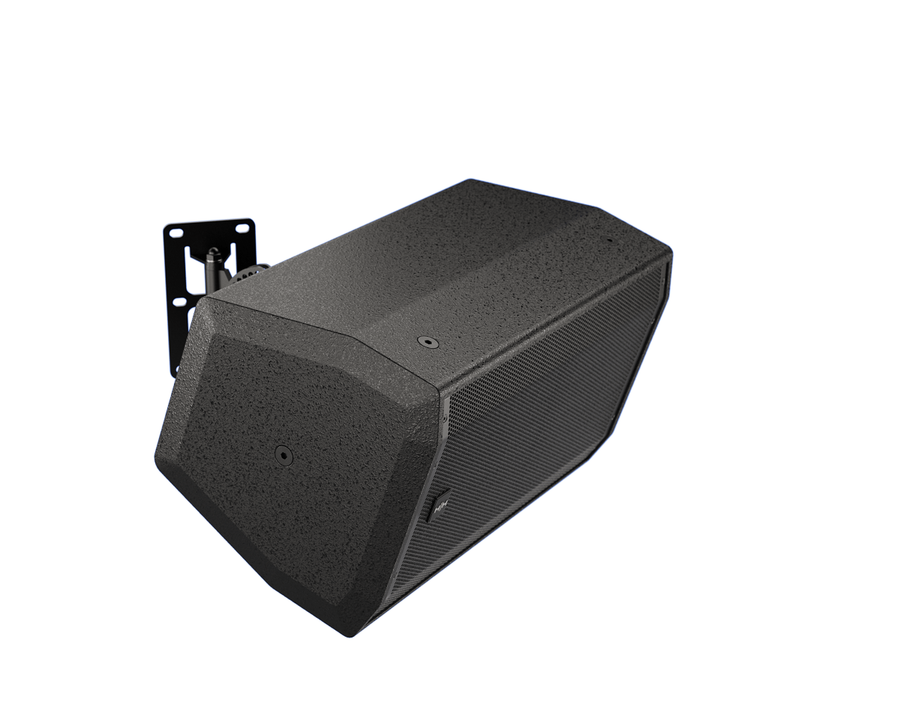

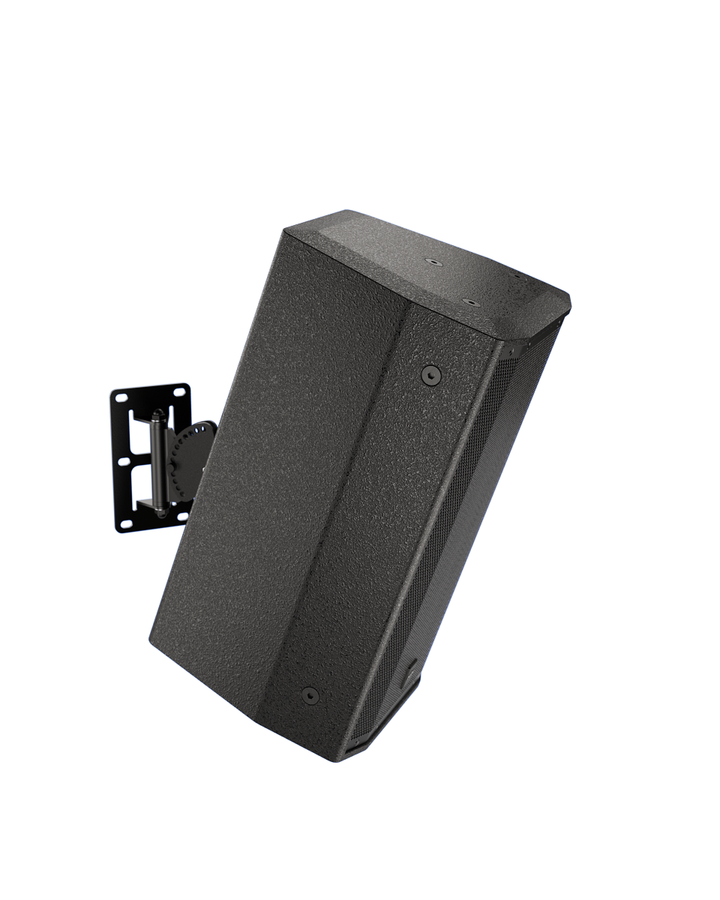

| Mounting Bracket | 4x M8 mounting points for optional HH-BRK30 |
| Mounting Points | 7x M10 Penn-Elcom fly points (3 on top face, 2 on side face, 1 on rear, 1 on bottom) |
| Unit Dimensions (Hwd) | 474 x 270 x 257mm, 18.7" x 10.6" x 10.1" |
| Unit Weight | 10Kg, 22 lbs |
| Carton Dimensions (Hwd) | 570 x 370 x 350mm, 22.4" x 14.6" x 13.8" , 0.074 M3 |
| Packed Weight | 12Kg, 26.5 lbs |
