| Frequency Response (-10) | 35Hz - 2kHz |
|---|---|
| Frequency Response (-3) | 40Hz - 500Hz |
| Power | 300W AES, 1200W Peak |
| Sensitivity (1W/1M) | 95dB |
| Max SPL (1M) (Peak) | 126dB |
| Nominal System Impedance | 8 Ohm |

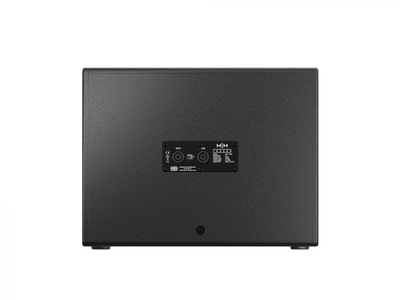

| Input Connector | NL4 ±1 Twist Lock Connector |
| Link Connector | NL4 ±1 Twist Lock Connector |
| LF Driver | 1 x 12 Inch High sensitivity HH designed driver |
| Cabinet | 15mm plywood cabinet |
|---|---|
| Finish | Painted Black (White finish optional, subject to MOQ) |
| Mounting Bracket | TNA-BRK1 for suspended mounting (available separately) |
| Mounting Points | M8 fixings for optional TNA-BRK1 flying bracket assembly or TNA-DF1 dolly frame assembly (available separately) |
| Grille | 1.5mm Thickness Steel, Hexagonal mesh, acoustic foam lined |
| Dimensions | 365 x 460 x 470mm, 14.4" x 18.1" x 18.5" |
| Unit Weight | 18.8 Kg, 41.4 lbs |
| Carton Dimensions (Hwd) | 535 x 430 x 530mm, 21.1" x 16.9" x 20.9" |
| Packed Weight | 22.5Kg, 49.6 lbs |
