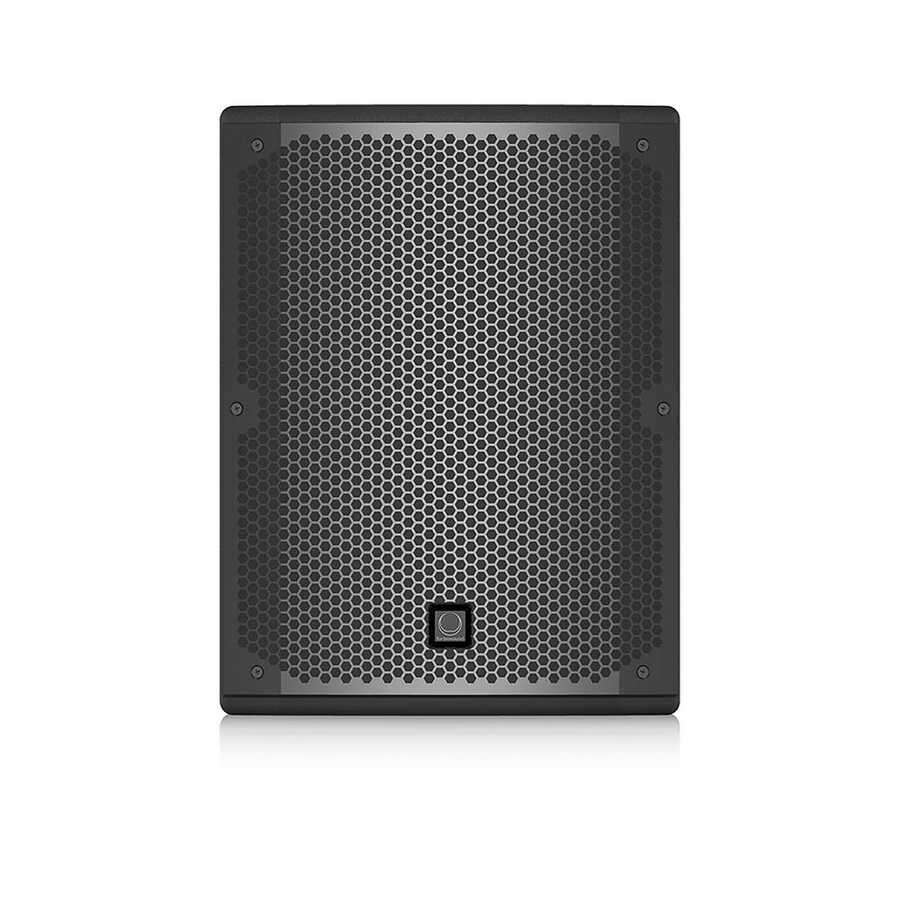

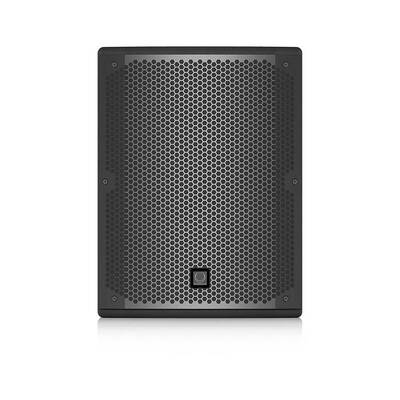

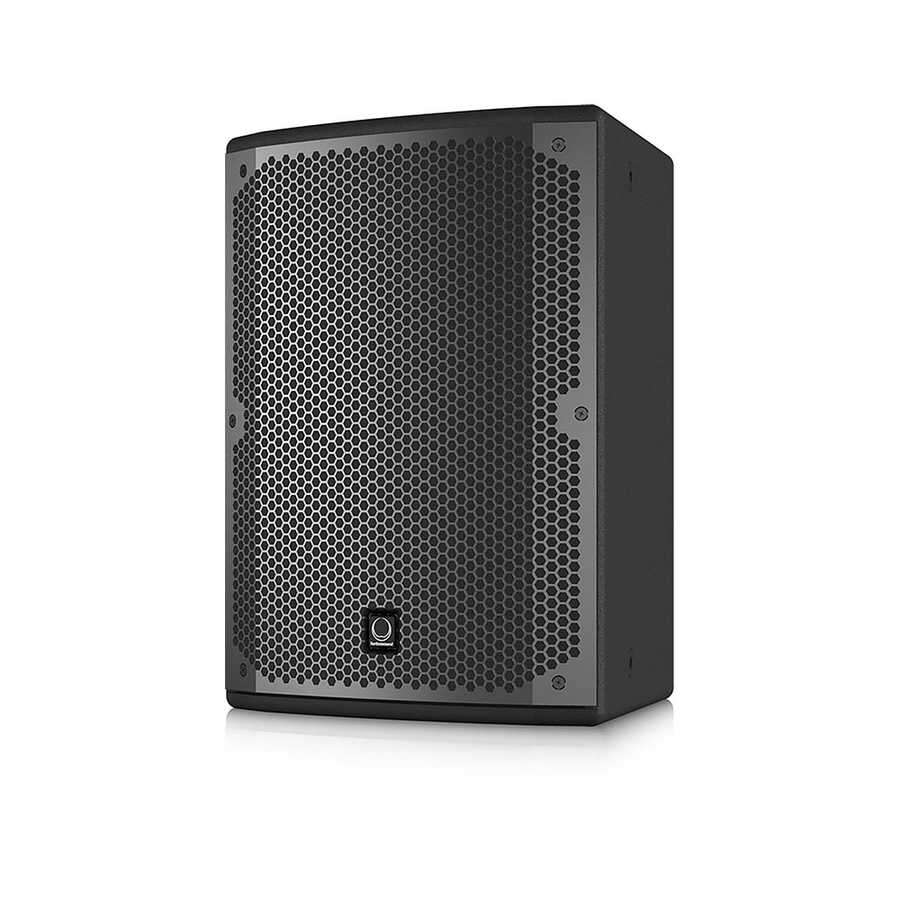

Turbosound - TCX82 Stüdyo Monitörü

Dimensions (H x W x D) 408 x 312 x 280 mm (16.1 x 12.3 x 11�)
Net Weight 11.1 kg (24.4 lbs)
Components 1 x 8” (203 mm) LF driver, 1 x 1” (25 mm) HF driver on a Converging Elliptical Waveguide
Frequency Response 100 Hz - 20 kHz ±3 dB, 70 Hz - 20 kHz ±10 dB
Dispersion 90° H x 60° V @ -6 db points
Sensitivity (1 W @ 1 M) 94 dB, 1 Watt @ 1 metre
Power Handling 200 Watts continuous, 800 Watts peak
Calculated Max SPL 117 dB continuous, 123 dB peak
Nominal Impedance 8 Ohms
Crossover 3.5 kHz
Construction 12 mm (1/2") birch plywood, finished in black semi matt textured paint
Grille Powder coated perforated mild steel

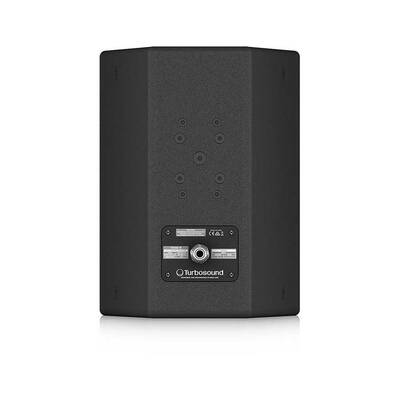

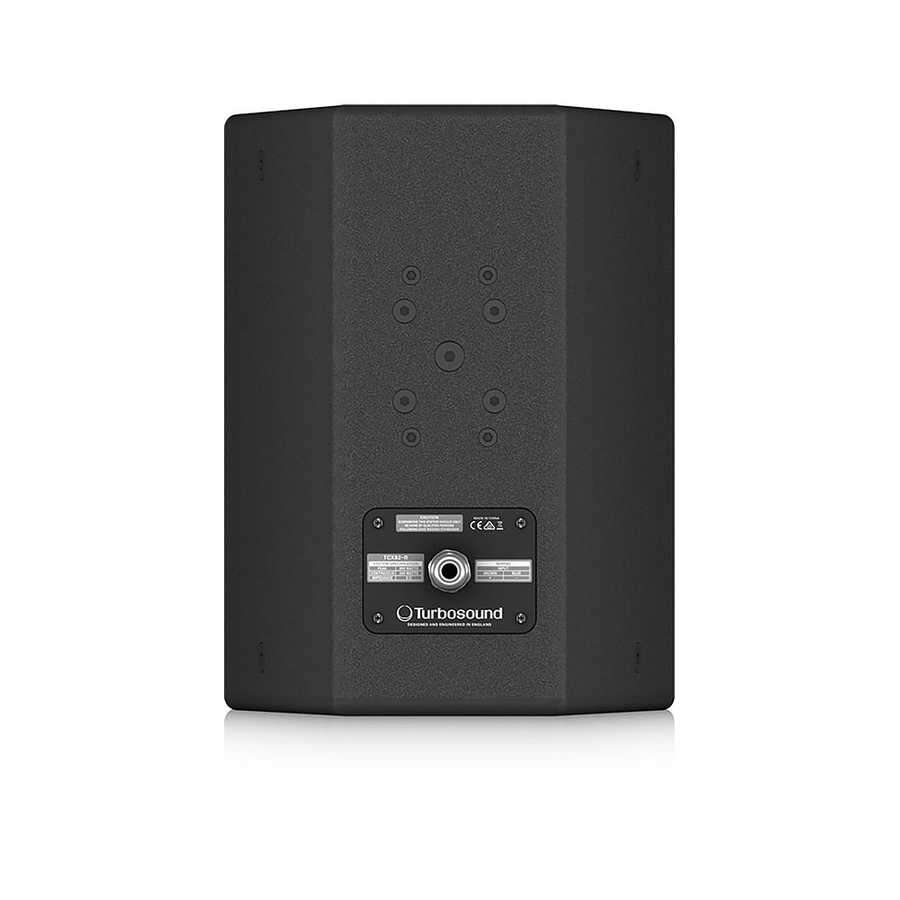

Connectors 2 x Neutrik speakON* NL4, wired pin 1+: positive, pin 1-: negative, pins 2+ and 2- N/C, 1 x 4-way barrier strip connector
Protection
Options White semi matt textured paint
Rigging 9 x M10 internal rigging points for eyebolts
4 x M8 internal rigging points for TURBOSOUND brackets
4 x M6 internal rigging points for OmniMount™ brackets
