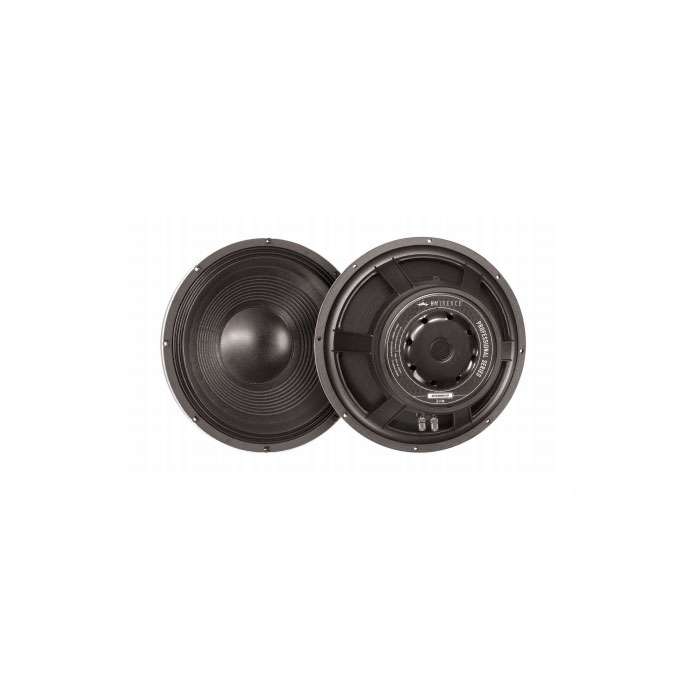

Eminence - Omega Pro 18 Subbass Hoparlör 18 inç 800W

Paylaş:
Stok Kodu
:
47750
Stok Durumu
:
Bilgi Alınız
Ebat
:
18" - 46 cm
Tip
:
Subbass
Watt Peak - Editör
:
800
Neodymium
:
Hayır
  • Ürün Özellikleri
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Hızlı Mesaj
  • Öneri Kutusu
  • Tavsiye Et
  • SPECIFICATION
    Nominal Basket Diameter18", 457 mm
    Nominal Impedance*8 Ω
    Power Rating**
    Watts800 W
    Music Program1600 W
    Resonance25 Hz
    Usable Frequency Range40 Hz - 0.8 kHz
    Sensitivity***97 dB
    Magnet Weight109 oz.
    Gap Height0.375", 9.5 mm
    Voice Coil Diameter4", 102 mm
    THIELE & SMALL PARAMETERS
    Resonant Frequency (fs)25 Hz
    DC Resistance (Re)5.2 Ω
    Coil Inductance (Le)1.67m H
    Mechanical Q (Qms)8.18
    Electromagnetic Q (Qes)0.32
    Total Q (Qts)0.31
    Compliance Equivalent Volume (Vas)548.7 liters / 19.38 cu.ft.
    Peak Diaphragm Displacement Volume (Vd)556 cc
    Mechanical Compliance of Suspension (Cms)0.29 mm/N
    BL Product (BL)18.8 T-M
    Diaphragm Mass Inc. Airload (MMs)137 grams
    Efficiency Bandwidth Product (EBP)79
    Maximum Linear Excursion (Xmax)4.8 mm
    Surface Area of Cone (Sd)1159 cm2
    Maximum Mechanical Limit (Xlim)16.0 mm
    MOUNTING INFORMATION
    Recommended Enclosure Volume
    SealedN/a
    Vented96.00-198.00 liters / 3.40-7.00 cu.ft.
    Driver Volume Displaced0.234 cu.ft. / 6.62 liters
    Overall Diameter18", 457.2 mm
    Baffle Hole Diameter16.56", 420.6 mm
    Front Sealing GasketYes
    Rear Sealing GasketYes
    Mounting Holes Diameter0.28", 7.1mm
    Mounting Holes B.C.D.17.25", 438.2mm
    Depth8.15", 207 mm
    Net Weight25.2 lbs, 11.43 kg
    Shipping Weight28.9 lbs, 13.11 kgs
    MATERIALS OF CONSTRUCTION
    Coil ConstructionCopper voice coil
    Coil FormerPolyimide former
    Magnet CompositionFerrite magnet
    Core DetailsVented and extended core

    Basket MaterialsDie-cast aluminum basket
    Cone CompositionPaper cone
    Cone Edge CompositionCloth cone edge
    Dust Cap CompositionSolid composition paper dust cap
    Garanti Bilgisi
    :
    24 Ay
