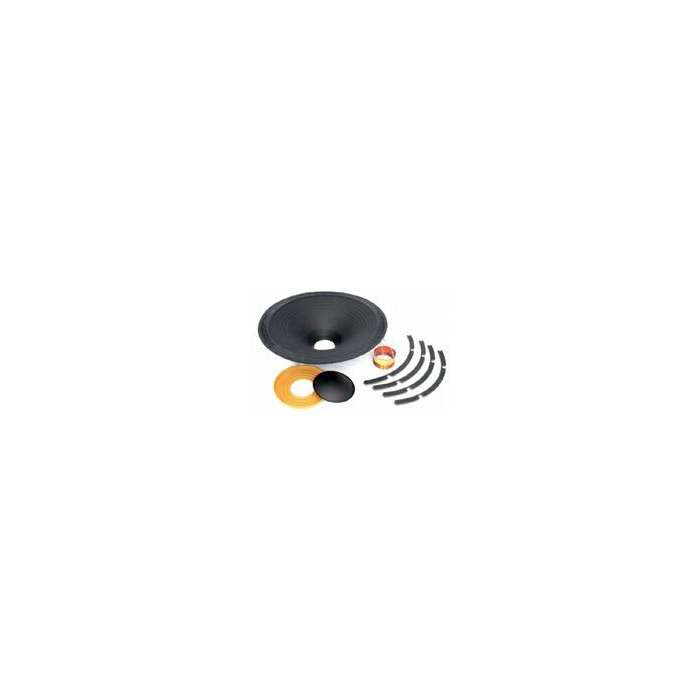

Eminence - Omega Pro 15 Tamir Takımı

Paylaş:
Stok Kodu
:
47768
Stok Durumu
:
Bilgi Alınız
  • Ürün Özellikleri
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Hızlı Mesaj
  • Öneri Kutusu
  • Tavsiye Et
  • SPECIFICATION
    Nominal Basket Diameter15", 381 mm
    Nominal Impedance*8 Ω
    Power Rating**
    Watts800 W
    Music Program1600 W
    Resonance33 Hz
    Usable Frequency Range51 Hz - 1.7 kHz
    Sensitivity***97.3 dB
    Magnet Weight109 oz.
    Gap Height0.375", 9.5 mm
    Voice Coil Diameter4", 102 mm
    THIELE & SMALL PARAMETERS
    Resonant Frequency (fs)33 Hz
    DC Resistance (Re)5.28 Ω
    Coil Inductance (Le)1.04m H
    Mechanical Q (Qms)5.69
    Electromagnetic Q (Qes)0.33
    Total Q (Qts)0.32
    Compliance Equivalent Volume (Vas)258.5 liters / 9.13 cu.ft.
    Peak Diaphragm Displacement Volume (Vd)411 cc
    Mechanical Compliance of Suspension (Cms)0.25 mm/N
    BL Product (BL)17.5 T-M
    Diaphragm Mass Inc. Airload (MMs)94 grams
    Efficiency Bandwidth Product (EBP)99
    Maximum Linear Excursion (Xmax)4.8 mm
    Surface Area of Cone (Sd)856.3 cm2
    Maximum Mechanical Limit (Xlim)12.2 mm
    MOUNTING INFORMATION
    Recommended Enclosure Volume
    SealedN/a
    Vented57.00-108.00 liters / 2.00-3.80 cu.ft.
    Driver Volume Displaced0.152 cu.ft. / 4.31 liters
    Overall Diameter15.21", 386.3 mm
    Baffle Hole Diameter14", 355.6 mm
    Front Sealing GasketYes
    Rear Sealing GasketYes
    Mounting Holes Diameter0.28", 7.1mm
    Mounting Holes B.C.D.14.56", 369.8mm
    Depth6.35", 161.3 mm
    Net Weight22.7 lbs, 10.3 kg
    Shipping Weight25.2 lbs, 11.43 kgs
    MATERIALS OF CONSTRUCTION
    Coil ConstructionCopper voice coil
    Coil FormerPolyimide former
    Magnet CompositionFerrite magnet
    Core DetailsVented and extended core

    Basket MaterialsDie-cast aluminum basket
    Cone CompositionPaper cone
    Cone Edge CompositionCloth cone edge
    Dust Cap CompositionSolid composition paper dust ca
    Garanti Bilgisi
    :
    24 Ay
