Shure - MX410RLP/N Minyatür Gooseneck Mikrofon

Shure MX410RLP/N Minyatür Gooseneck Mikrofon

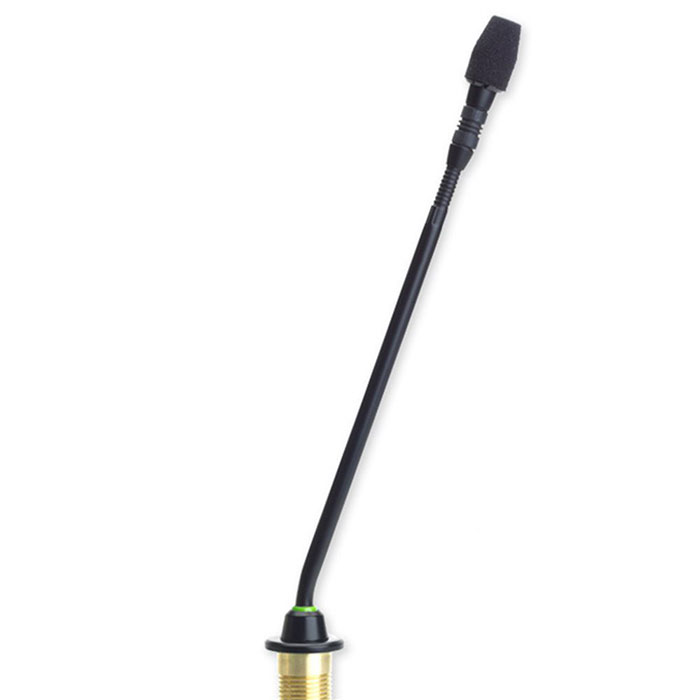

The Shure MX410RLP/N 10" Gooseneck Microphone (Less Preamplifier, No Capsule, Light Ring) is a flexible speech microphone designed for applications in meeting rooms, lecture halls, houses of worship and anywhere a high-quality speech microphone is desired. This 10" gooseneck microphone features interchangeable capsules and a choice of a desk-mount preamplifier or direct flush-mounting into a table surface. The microphone is also available with an LED light ring. Wireless options enable full compatibility with the Shure SLX series wireless systems. The MX410RLP/N is available with an LED light ring for a quick read on microphone status.

Shure MX410RLP/N Features

Single color light ring

Logic input/output for remote LED and mute control

CommShield Technology for improved RF filtering

Frequency Response50 to 17000 HzPolar PatternNo CartridgeOutput ImpedanceEIA Rated at 150 Ohms (170 Ohms actual)Output ConfigurationActive balancedDynamic Range (1 kilohm load at 1 kHz)3 dBCommon Mode Rejection (10 Hz to 100 kHz)45 dB minimumPreamplifier Output Clipping Level-8 dBV (0.4 V)Logic ConnectionsLED IN: Active low (=1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V

LOGIC OUT: Active low (=1.0V), syncs up to 20mA, TTL compatible

Absolute maximum voltage: -0.7V to 50V (up to 50V through 3 kilohms)Mute Switch Attenuation-50 dB minimumOperating Temperature-18 to 57 deg. C (0 to 135 deg. F)Storage Temperature-29 to 74 deg. C (-20 to 165 deg. F)Relative Humidity0 to 95%Power Requirements48 to 52 Vdc phantom, 8.0 mAMic Length10 inch (254 mm)Weight0.150 lbs (0.068 kg)Mfr #MX410RLP/NSKUSHMX410RLP
