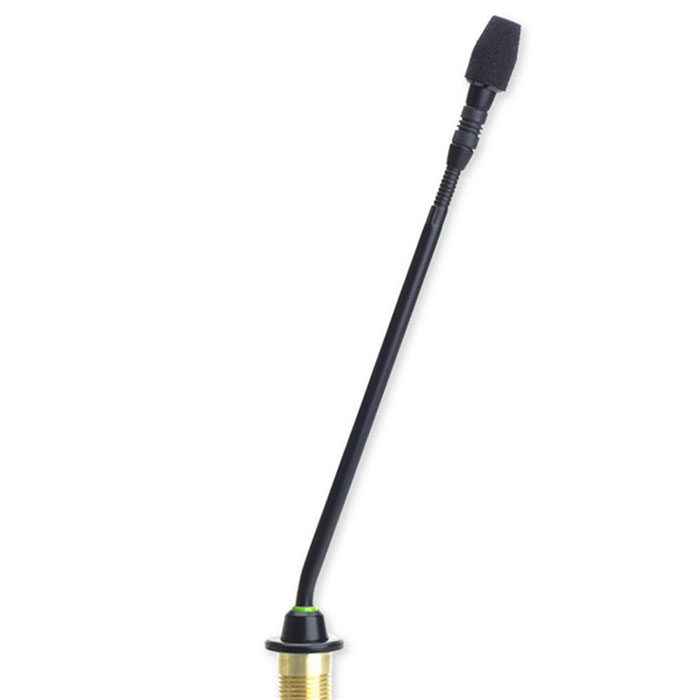

Shure - MX410LP/C Minyatür Gooseneck Mikrofon

Shure MX410LP/C Minyatür Gooseneck Mikrofon

10" gooseneck condenser mic for podiums.

The Shure MX410 Microflex Miniature Gooseneck Microphone is flexible in more ways than one. The MX410 delivers unsurpassed style and performance for boardrooms, podiums, conference rooms and similar applications. It is fully compatible with Shure SLX wireless systems.

Includes rubber isolation rings, wing nut, cap, and snap-fit foam windscreen.

A compatible MX400DP Microflex desktop mic base is sold separately.

FEATURES

Low profile, aesthetic design

Bi-color status indicator

Wide dynamic range and smooth frequency response

Programmable mute switch (desktop models only)

Logic input/output for remote LED and mute control

Surface-mount and wired or wireless desktop base options

CommShield Technology for improved Radio Frequency filtering

10 inch (254 mm) gooseneck

Includes rubber isolation rings, wing nut, cap, snap-fit foam windscreen

Get Shure sound and styling for your podium. Order today!

SPECIFICATIONS

MX410LP/C Microflex Mini 10" Gooseneck Mic

Type: Condenser (electret bias)

Frequency Response: 50—17000 Hz

Polar Pattern: Cardioid

Output Impedance: EIA Rated at 150 Ohms (170 Ohms actual)

Output Configuration: Active balanced

Sensitivity (at 1 kHz , open circuit voltage):—35 dBV/Pa (18 mV) 1 Pascal=94 dB SPL: Maximum SPL (1kHz at 1% THD, 1 Kohm load) 121 dB

Equivalent Output Noise (A-weighted): 28 dB SPL

Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz): 66 dB

Dynamic Range (1 Kohm load at 1 kHz): 93 dB

Common Mode Rejection (10 Hz to 100 kHz): 45dB minimum

Preamplifier Output Clipping Level (1% THD): —8 dBV (0.4 V)

Polarity: 5-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector

Logic Connections: LED IN: Active low (≤1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V. LOGIC OUT: Active low (≤1.0V), sinks up to 20mA, TTL compatible. Absolute maximum voltage: -0.7V to 50V (up to 50V through 3kohms).

Mute Switch Attenuation: —50 dB minimum

Environmental Conditions: Operating Temperature: -18—57 degrees C (0—135 degrees F); Storage Temperature: -29—74 degrees C (-20—165 degrees F); Relative Humidity: 0—95%

Power Requirements: 48—52 VDC phantom, 8.0 mA

Net Weight: 0.068 lbs (0.054 kg)
