LD Systems - MEI ONE Monitör Sistem

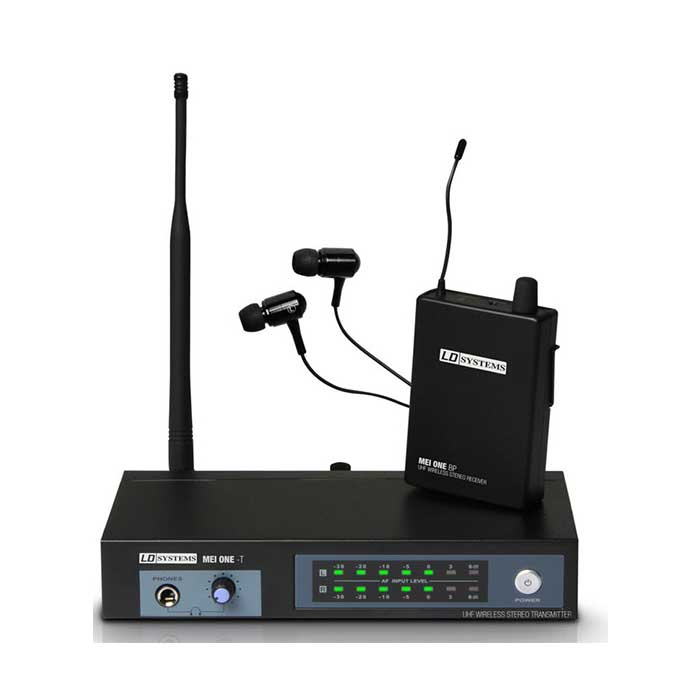

LD Systems MEI ONE Monitör Sistem

Product number: LDMEIONE1

Product type: In-Ear Monitoring Set

Transmission frequency range: 863.700MHz

Weight: 1.12kg

LDMEI100EP - Earphones for LDMEI100 and LDMEIONE

Product type: headphones

Type: In-ear

Frequency response: 50Hz

Impedance: 32Ohm(s)

Connection type: 3.5 mm TRS

Cable length: 1m

Accessories (included): 3 sizes of ear-cushions

LDMEIONE1BPR - Receiver for LD MEI ONE 1 In-Ear Monitoring System wireless 863,700 MHz

Product type: beltpack receiver

Transmission frequency range: 863.700MHz

Channels: 1

Transmission method: FM

Frequency response: 80Hz

Signal-to-noise ratio: >80dB

THD: <1 %

Dynamic range: >90dB

Audio output: 3.5 mm TRS

Max. audio output level: 100mW

Controls: volume on/off

Indicators: battery status LED (low), HF signal LED

Operating voltage: 2 x AA battery

Operating time: >5 h (with alkaline batteries)

Width: 65mm

Height: 95mm

Depth: 25mm

Weight: 0.1kg

Features: incl. batteries

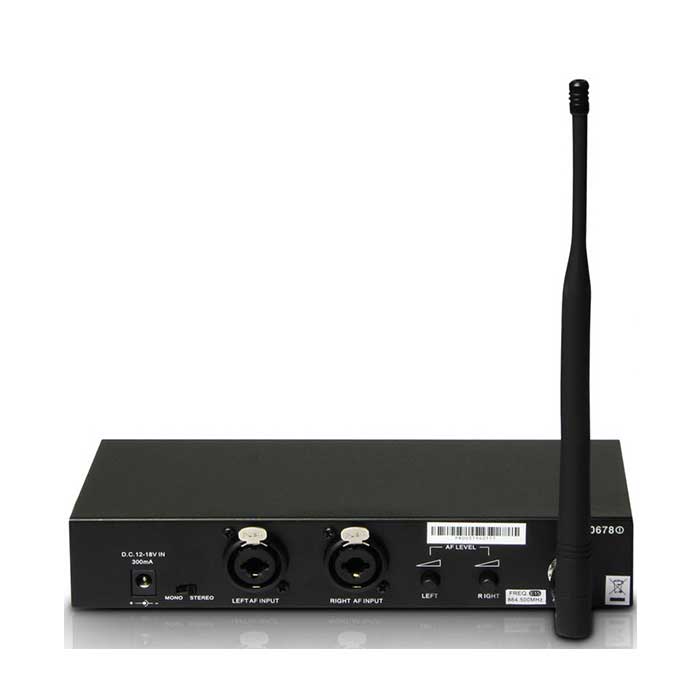

LDMEIONE1T - Transmitter for LD MEI ONE 1 in-ear monitoring system wireless 863.700 MHz

Product type: transmitter

Transmission frequency range: 863.700MHz

Channels: 1

Modes of operation: mono/stereo

Transmission method: FM

Rated HF output power: 10

Frequency response: 80Hz

Signal-to-noise ratio: > 85dB

THD: < 1 %

Dynamic range: > 90dB

Inputs: 2

Input connectors: XLR, 6.3 mm Jack

Input impedance (kOhms): 100kOhm

Antenna connector: TNC

Controls: AF level right input, volume headphones, Power, mono/stereo mode, AF level left input

Indicators: 7-segment AF input level meter (left / right)

Operating voltage: External Power Supply, 12 V DC - 18 V DC (300 mA)

Width: 212mm

Height: 38mm

Depth: 96mm

Weight: 1kg

Accessories (included): batteries, antenna, power supply
