Lavoce

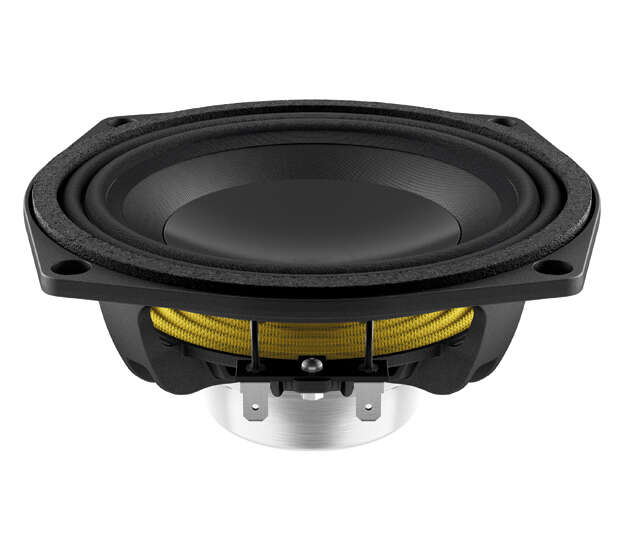

MAN062.006.5" MIDRANGE

11.702 TL
Fiyat Alarmı

Tükendi

Gelince Haber Ver
11.702 TL
Gelince Haber Ver
GENERAL SPECIFICATIONS
Nominal diameter
mm (in)
165 (6.5)
Nominal Impedance
Ohm
8
Minimum impedance
Ohm
6,7
Program power
W
500
AES Power rating
W
250
Sensitivity
dB
98
Frequency range
Hz
100 ÷ 4000
Voice coil diameter
mm (in)
51 (2)
Chassis material

Aluminium
Magnet material

Neodymium
Magnet dimensions OD x ID x h
mm (in)
50 x 9 + 48 x 5 (1.97 x 0.35 + 1.89 x 0.2)
Coil material

CCAW
Former material

Glass Fiber
Cone material

Water Resistant Treated Paper + Water Proof Front Side Treatment
Surround material

Polycotton
Xmax
mm (in)
3,9 (0.15)
Xmech
mm (in)
6,4 (0.25)
Gap height
mm (in)
6 (0.24)
Voice coil winding height
mm (in)
10,8 (0.43)
Driver displacement volume
l (ft³)
0,423 (0.015)
Recommended Enclosure
l (ft³)
7 (0.25)
Recommended Tuning
Hz
107
SMALL SIGNAL PARAMETERS
DC resistance (Re)
Ohm
5,7
Resonance frequency (Fs)
Hz
103
Moving mass (Mms)
g (oz)
14,38 (0.51)
Compliance (Cms)
mm/N
0,165
Force factor (Bxl)
N/A
12,72
Mechanical Q-factor (Qms)

2,82
Electrical Q-factor (Qes)

0,33
Total Q-factor (Qts)

0,3
Equivalent air volume (Vas)
l (ft3)
4,07 (0.1)
Voice coil inductance (Le)
mH
0,31
Diaphragm area (Sd)
cm2 (in.2)
132 (20.5)
Reference efficiency (Eta 0)

1,31 %
Efficiency bandwidth product (EBP)
Hz
312

SHIPPING INFORMATION
Net weight
kg (lb)
0,9 (2.03)
Multipack size W x D x H
mm x mm x mm (in x in x in)
385 x 355 x 200 (15.1 x 14 x 7.9)
Multipack weight
kg (lb)
9,1 (20)
