Product type
MAILA Subwoofer
Low/mid Woofer dimensions
2 x 15 "
Woofer dimensions (mm)
2 x 381 mm
Woofer voice coil (inch)
4 "
Woofer voice coil (mm)
100 mm
System Power (RMS)
2500 W
Frequency response (-6dB)
33 Hz - Preset
Max. SPL Peak (Pink noise)
137 dB (halfspace @1m, Crest factor 4)
Max. SPL Average (Sine burst)
132 dB (50 Hz - 120 Hz, halfspace @1m, 10% THD)
Protection circuits
limiter, over-current, thermal overload
Input impedance
20000 Ohm(s)

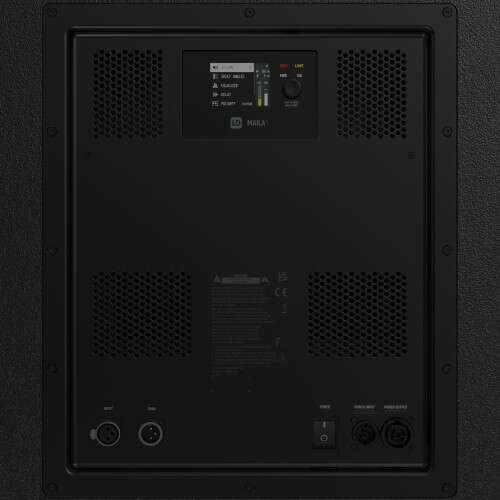

Controls
On / off switch, Rotary/push encoder
Indicators
Indication LED, LC display, Limit, Power, Protect, Signal
Line input connectors
XLR
Line output connectors
XLR
Wireless Connectivity
LogoLink® for App Control
Power consumption (max.)
1300 W
Operating voltage
100 V - 240 V AC / 50 - 60 Hz
Operating Temperature
0 - 40 °C
Relative Humidity
< 80 %, not condensing
Cabinet material
18 mm Birch Plywood
Cabinet construction
Quarter Wave Horn Bandpass
