Product type
MAILA Column

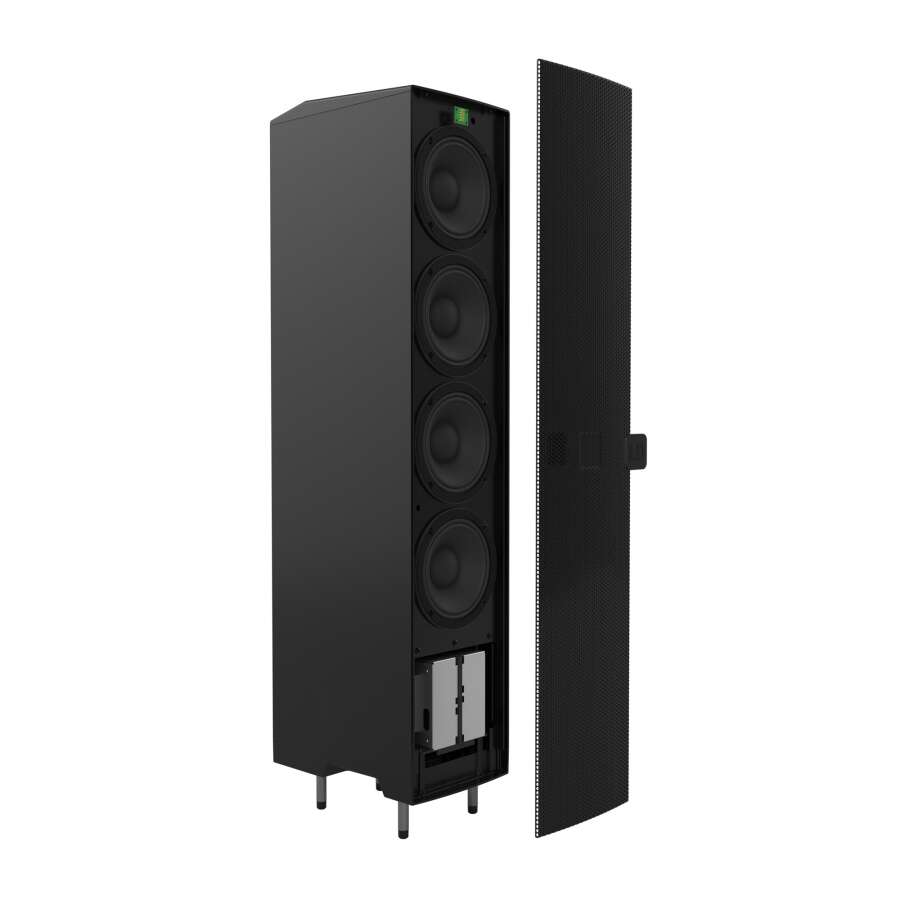

Low/mid Woofer dimensions
4 x 6.5 "
Woofer dimensions (mm)
165.1 mm
Woofer voice coil (inch)
2 "
Woofer voice coil (mm)
50 mm
System Power (RMS)
2500 W
Frequency response (-6dB)
105 Hz - 500 Hz
Max. SPL Peak (Pink noise)
130 dB (fullspace @1m, Crest factor 4)
Max. SPL Peak (Sine burst)
125.4 dB (fullspace @1m, 10% THD)
Max. SPL Average (Sine burst)
122 dB (100 Hz - 2 kHz, fullspace @1m, 10% THD)
Protection circuits
limiter, over-current, thermal overload
Input impedance
20000 Ohm(s)

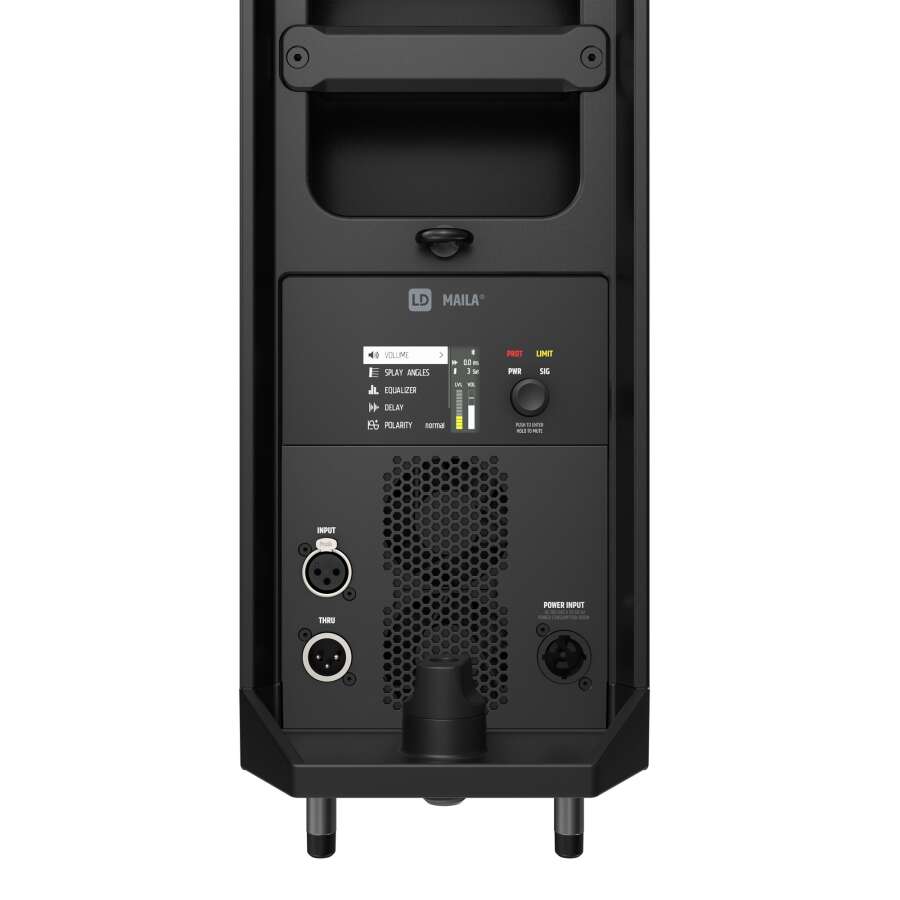

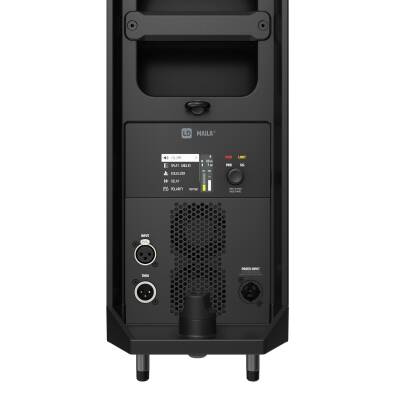

Controls
Rotary/push encoder
Indicators
Indication LED, LC display, Limit, Power, Protect, Signal
Line input connectors
XLR
Line output connectors
XLR
Speaker output connections
SmartLink+®
Wireless Connectivity
LogoLink® for App Control
Power consumption (max.)
800 W
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Operating Temperature
0 - 40 °C
Relative Humidity
< 80 %, not condensing
Cabinet material
Aluminium
Cabinet surface
Powder-coated
Cabinet construction
Bass Reflex
Mounting

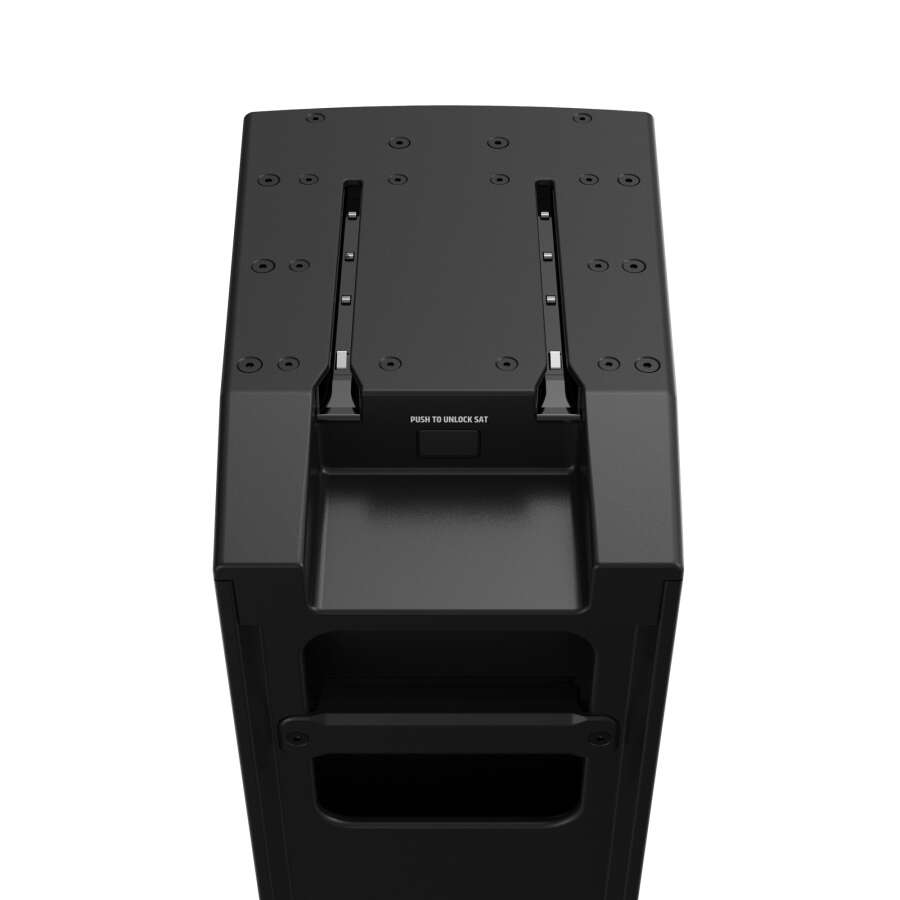

3 x M10, 4 x Pin, EasyMount+®
