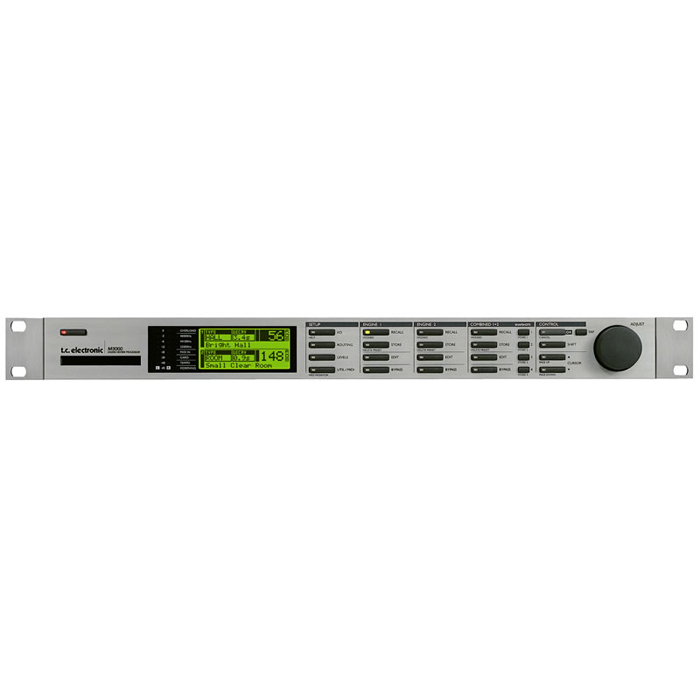

TC Electronic - M3000 Effects

Stüdyo multi efekt prosesörü

TEKNİK ÖZELLİKLER

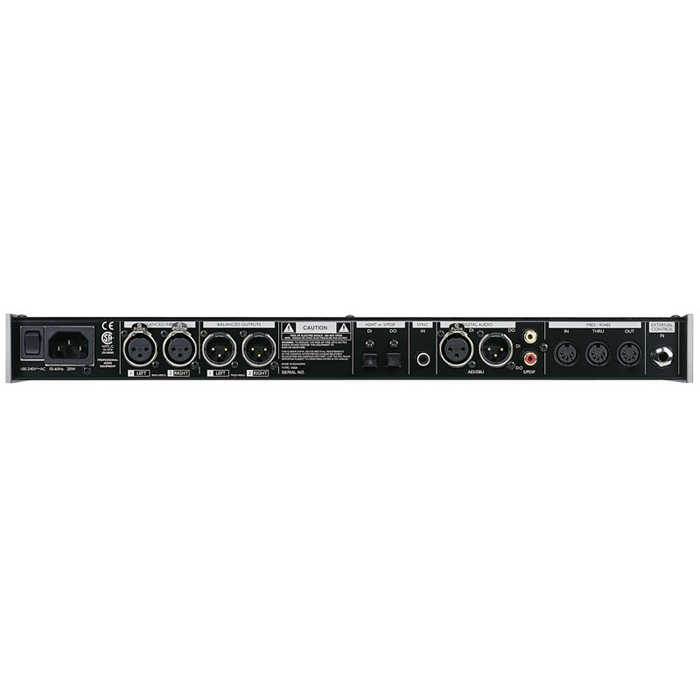

• Digital I/O: XLR (AES/EBU) RCA Phono (S/PDIF) Optical (Toslink, ADAT)
• Format: AES/EBU (24 bit), S/PDIF (20 bit), EIAJ CP-340, IEC 958, EIAJ Optical (Toslink), ADAT Lite pipe
• Word Clock Girişi: RCA Phono, 75 ohm, 0.6 to 10 Vpp
• Örnekleme: 44.1 kHz, 48 kHz
• Frekans Aralığı: 20 Hz - 23,9 kHz +0,01/-0,1 dB @ 48 kHz
• Analog Giriş: XLR balanced (pin 2 hot)
• A/D Dönüşüm: 24 bit (1 bit, 128 times oversampling
• Dynamic Range: >103 dB
• THD: -95 dB (0,0018 %) @ 1kHz -6 dBFS (FS @ +16 dBu)
• Frekans Aralığı: 10 Hz - 20 kHz: +0/-0.2 dB
• Analog Çıkış: XLR balanced (pin 2 hot)
• D/A Dönüşüm: 24 bit (1 bit, 128 times oversampling)
• Dynamic Range: >100 dB
• THD: -86 dB (0.005%) @ 1 kHz -6 dBFS (FS @ +16 dBu)
• Frekans Aralığı: 10 Hz - 20 kHz: +0/-0.5 dB
