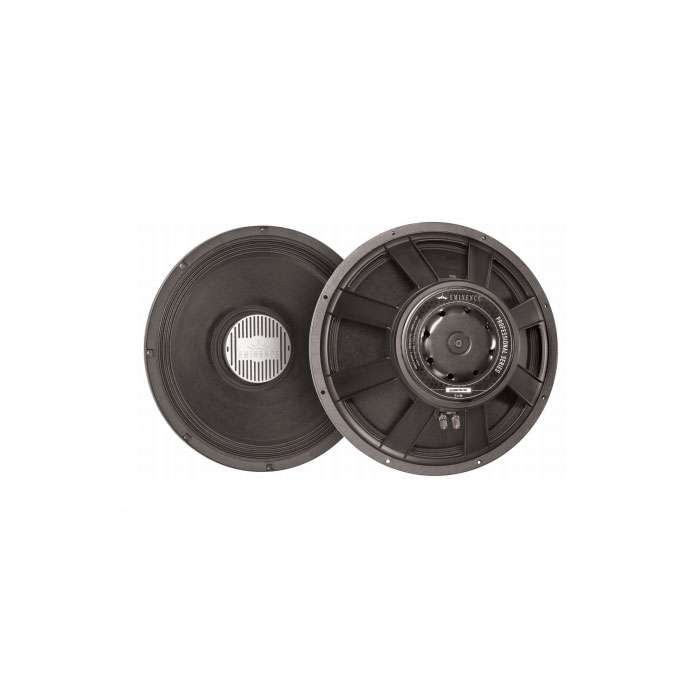

Eminence - Kilomax 18 Subbass Hoparlör 18 inç 1250W

Paylaş:
Stok Kodu
:
47752
Stok Durumu
:
Bilgi Alınız
Ebat
:
18" - 46 cm
Tip
:
Subbass, Subbass-Bass
Watt Peak - Editör
:
1250
Neodymium
:
Hayır
  • Ürün Özellikleri
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Hızlı Mesaj
  • Öneri Kutusu
  • Tavsiye Et
  • SPECIFICATION
    Nominal Basket Diameter18", 457 mm
    Nominal Impedance*8 Ω
    Power Rating**
    Watts1250 W
    Music Program2500 W
    Resonance32 Hz
    Usable Frequency Range33 Hz - 0.3 kHz
    Sensitivity***95.8 dB
    Magnet Weight109 oz.
    Gap Height0.375", 9.5 mm
    Voice Coil Diameter4", 102 mm
    THIELE & SMALL PARAMETERS
    Resonant Frequency (fs)32 Hz
    DC Resistance (Re)5.07 Ω
    Coil Inductance (Le)1.59m H
    Mechanical Q (Qms)10.15
    Electromagnetic Q (Qes)0.49
    Total Q (Qts)0.47
    Compliance Equivalent Volume (Vas)331.5 liters / 11.71 cu.ft.
    Peak Diaphragm Displacement Volume (Vd)1159 cc
    Mechanical Compliance of Suspension (Cms)0.18 mm/N
    BL Product (BL)17.2 T-M
    Diaphragm Mass Inc. Airload (MMs)143 grams
    Efficiency Bandwidth Product (EBP)65
    Maximum Linear Excursion (Xmax)10 mm
    Surface Area of Cone (Sd)1159 cm2
    Maximum Mechanical Limit (Xlim)19.2 mm
    MOUNTING INFORMATION
    Recommended Enclosure Volume
    Sealed104.80-172.70 liters / 3.70-6.10 cu.ft.
    Vented118.90-303.00 liters / 4.20-10.70 cu.ft.
    Driver Volume Displaced0.234 cu.ft. / 6.62 liters
    Overall Diameter18", 457.2 mm
    Baffle Hole Diameter16.56", 420.6 mm
    Front Sealing GasketYes
    Rear Sealing GasketYes
    Mounting Holes Diameter0.28", 7.1mm
    Mounting Holes B.C.D.17.25", 438.2mm
    Depth8.15", 207 mm
    Net Weight27.4 lbs, 12.43 kg
    Shipping Weight30.9 lbs, 14.02 kgs
    MATERIALS OF CONSTRUCTION
    Coil ConstructionCopper voice coil
    Coil FormerKapton former
    Magnet CompositionFerrite magnet
    Core DetailsExtended core with Core Periphery Ventilation

    Basket MaterialsDie-cast aluminum basket
    Cone CompositionTreated Paper-Kevlar
    Cone Edge CompositionCloth cone edge
    Dust Cap CompositionPorous cloth top spider/ heatsink
    Garanti Bilgisi
    :
    24 Ay
